Pulsar
The power in your hands.

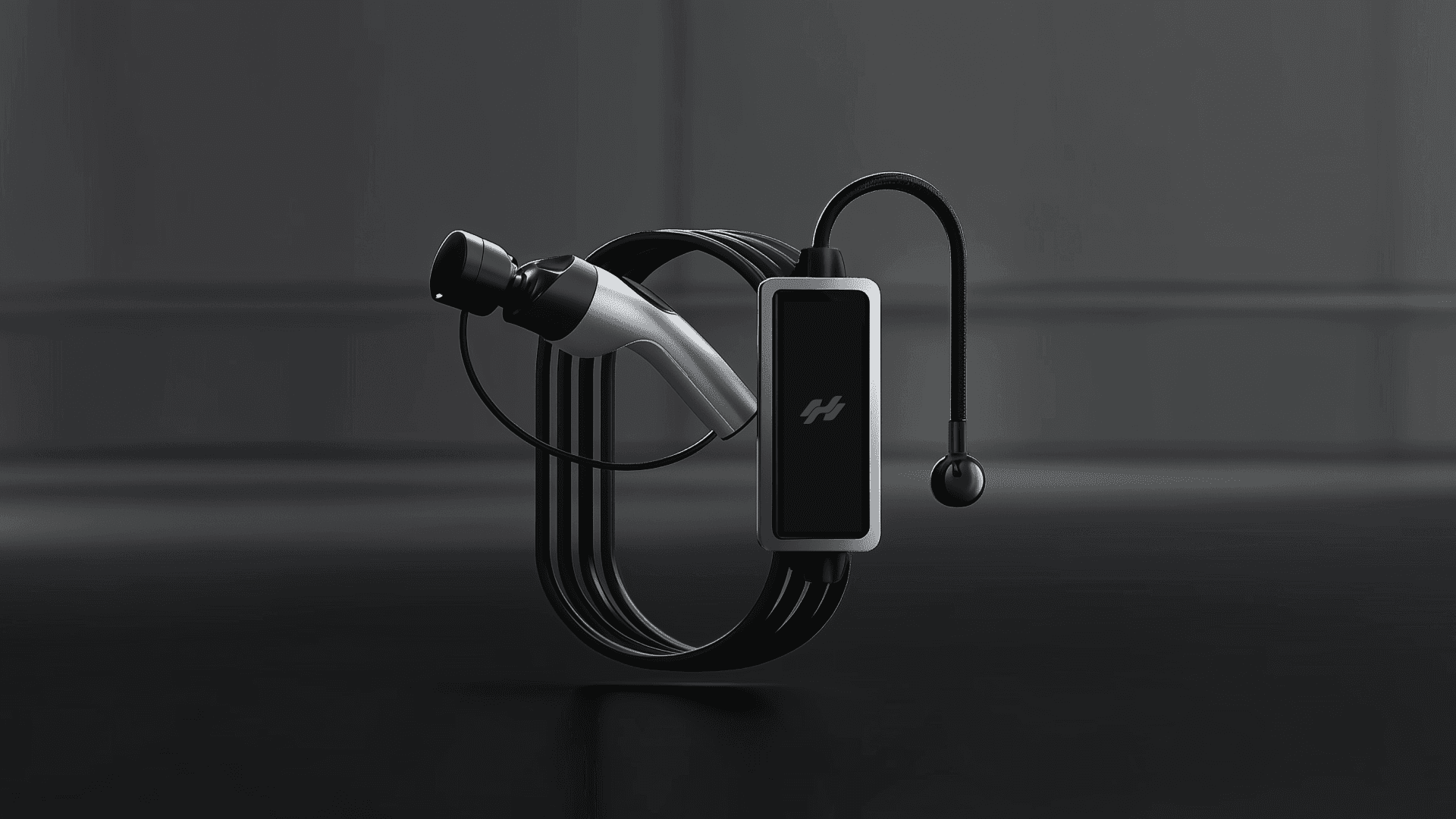

Light, elegant and capable. The Pulsar AC 3.5 kW is the charging companion for home and for the road. Current technology and excellent connectivity give you the freedom to charge anywhere. Put the power in your hands and step into electric mobility in style.

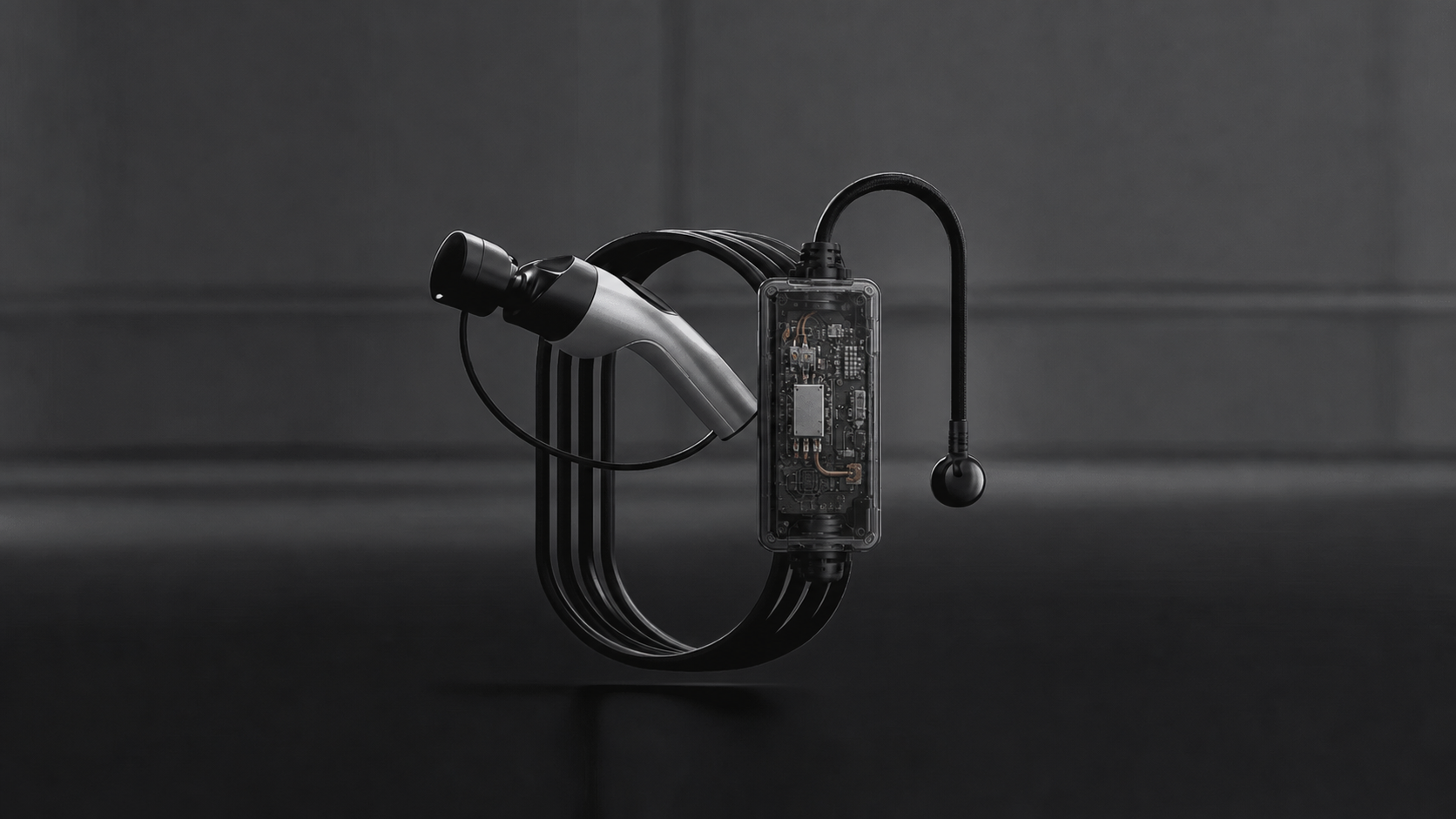

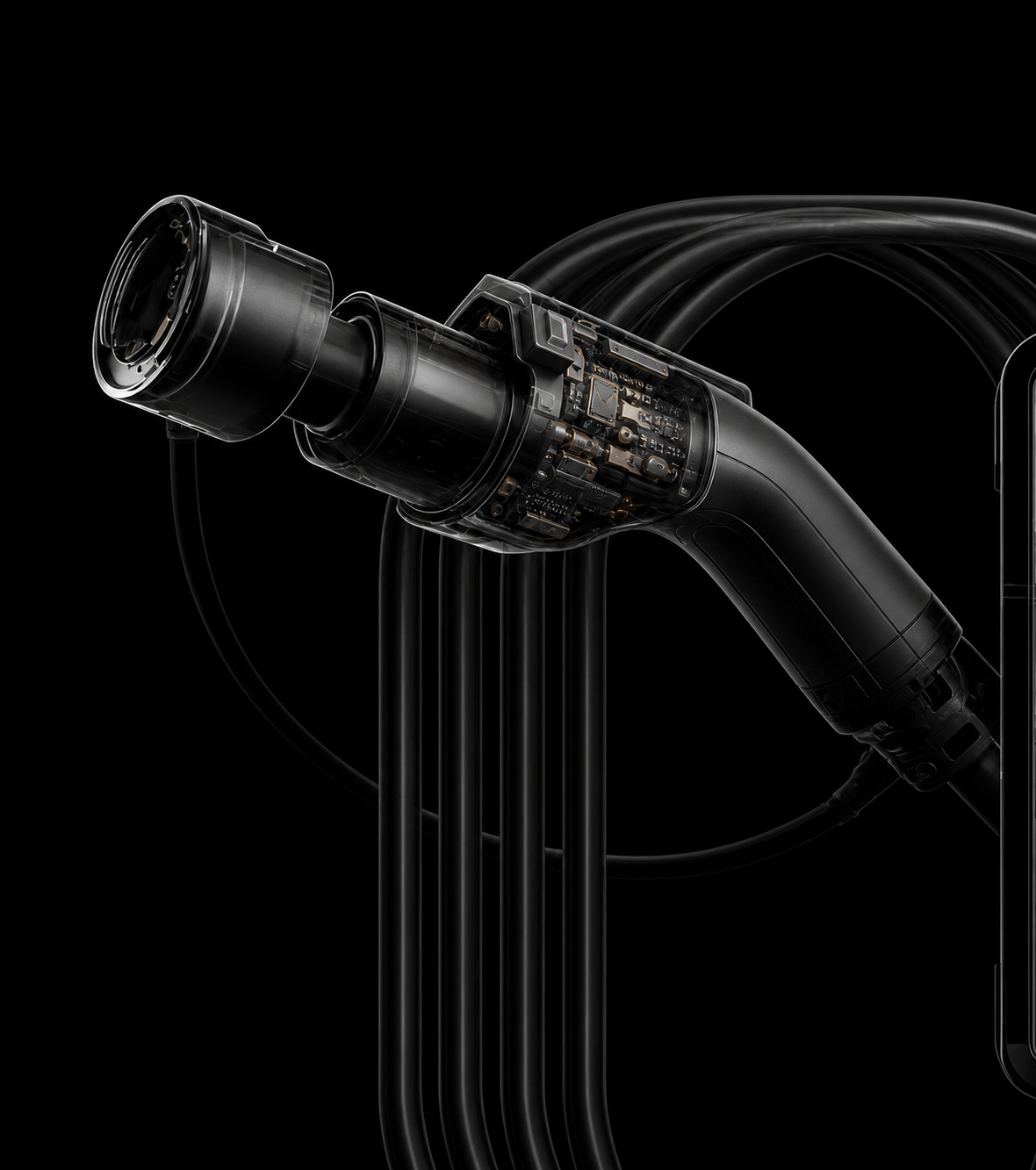

from the inside out.
01 Overview
Misty Black
Portable installation
The charge that
moves with you.

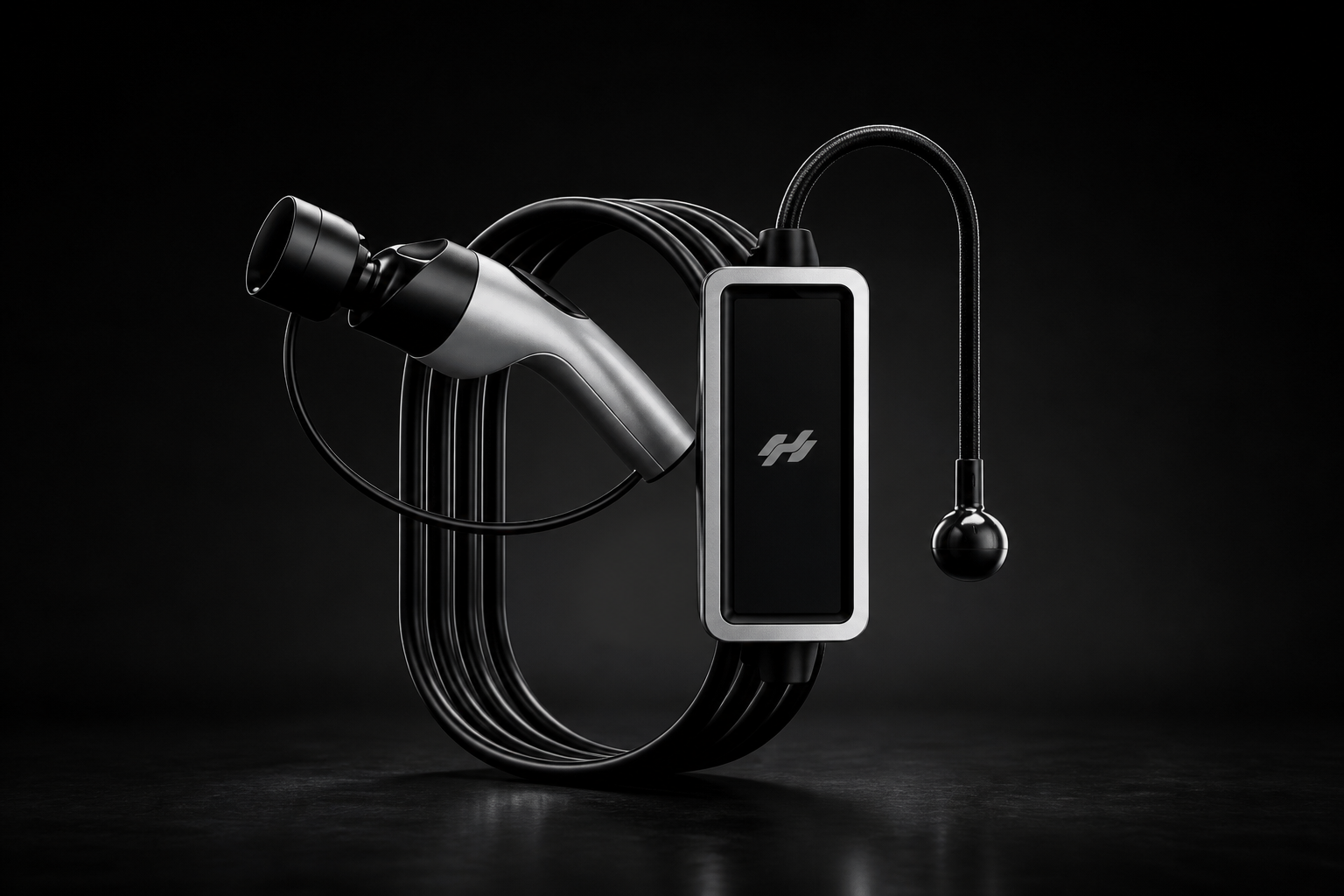

Weighing only 2.7 kg, durable construction and powerful performance, Pulsar revolutionizes charging. Whether at home or on the road, it offers maximum convenience and reliability. Choose it to make your every journey greener, smarter, more yours.
- Maximum power
- 3.5kW
- Charging outputs
- 01output
- Protection
- IP55enclosure
- Net weight
- 2.7kg
02 Design
Small in size.
Big on freedom.

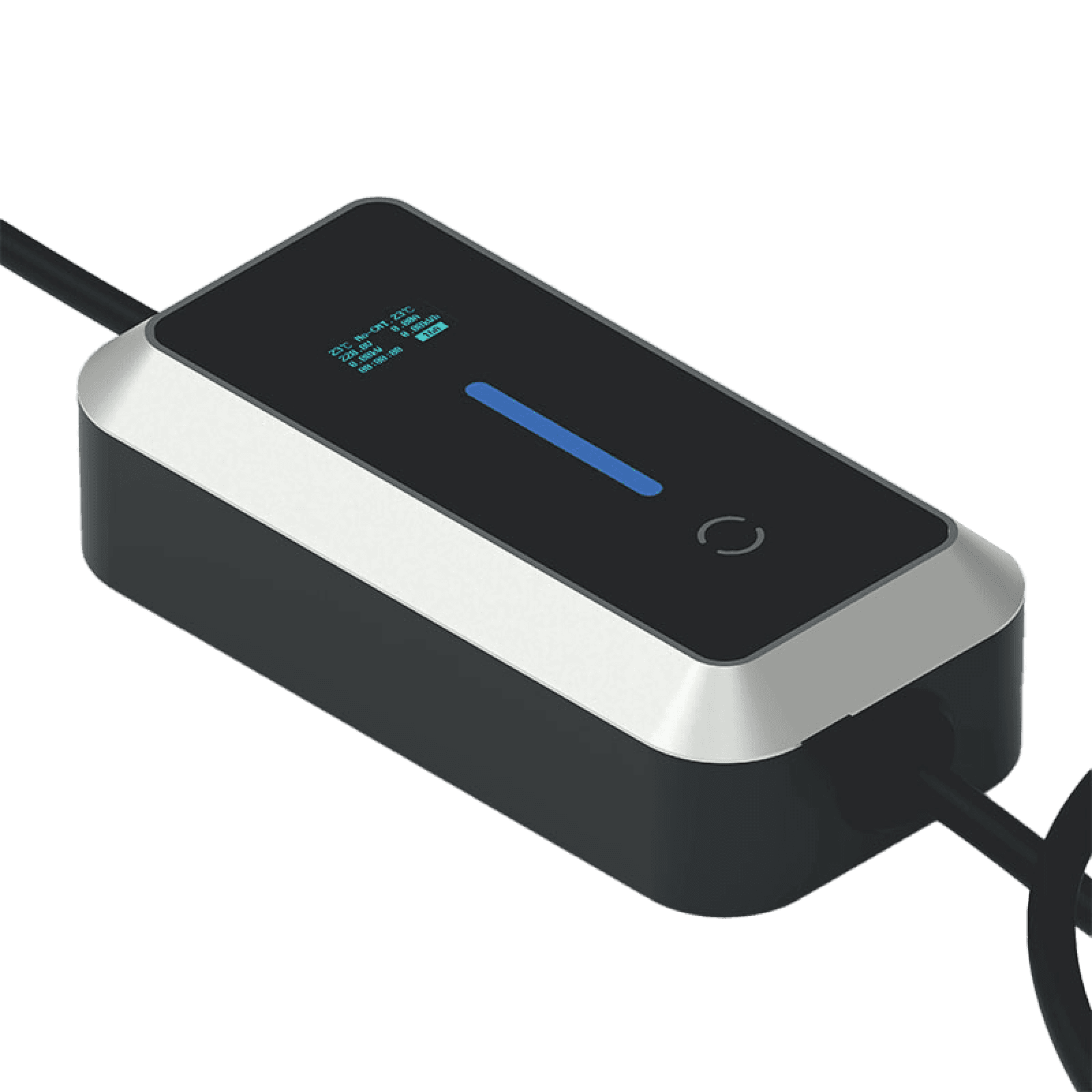

The Pulsar carries safe, reliable charging where you need it, with a compact body and handling that remains completely direct.
03 Technology
Designed for
daily readiness.
- 01
3.5 kW / Mode 2
Single-phase 16 A, 176–264 V AC supply and Mode 2 operation.
- 02

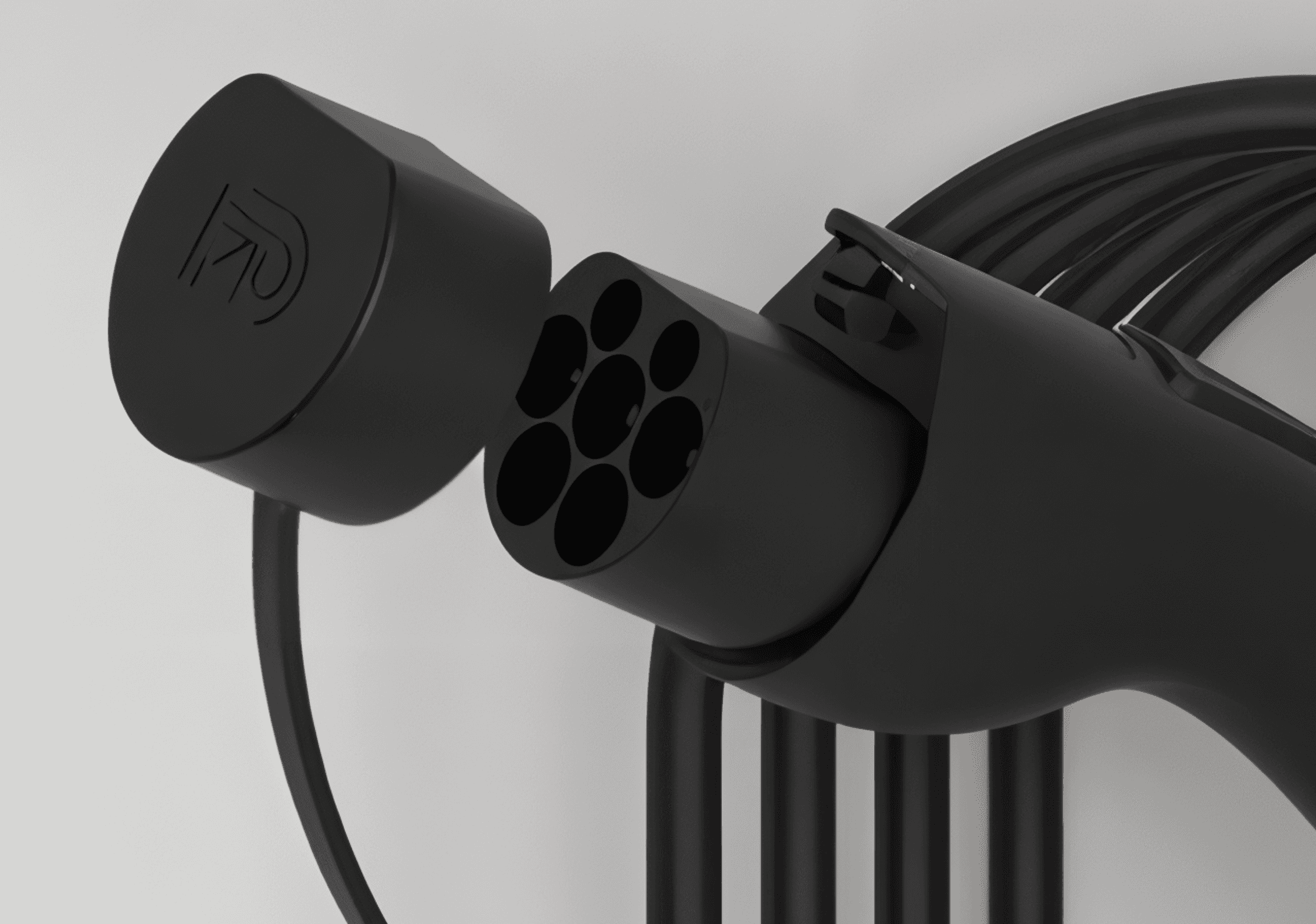

Fixed 5 m cable
One connection point, with Type 1, Type 2 or NACS options.
- 03

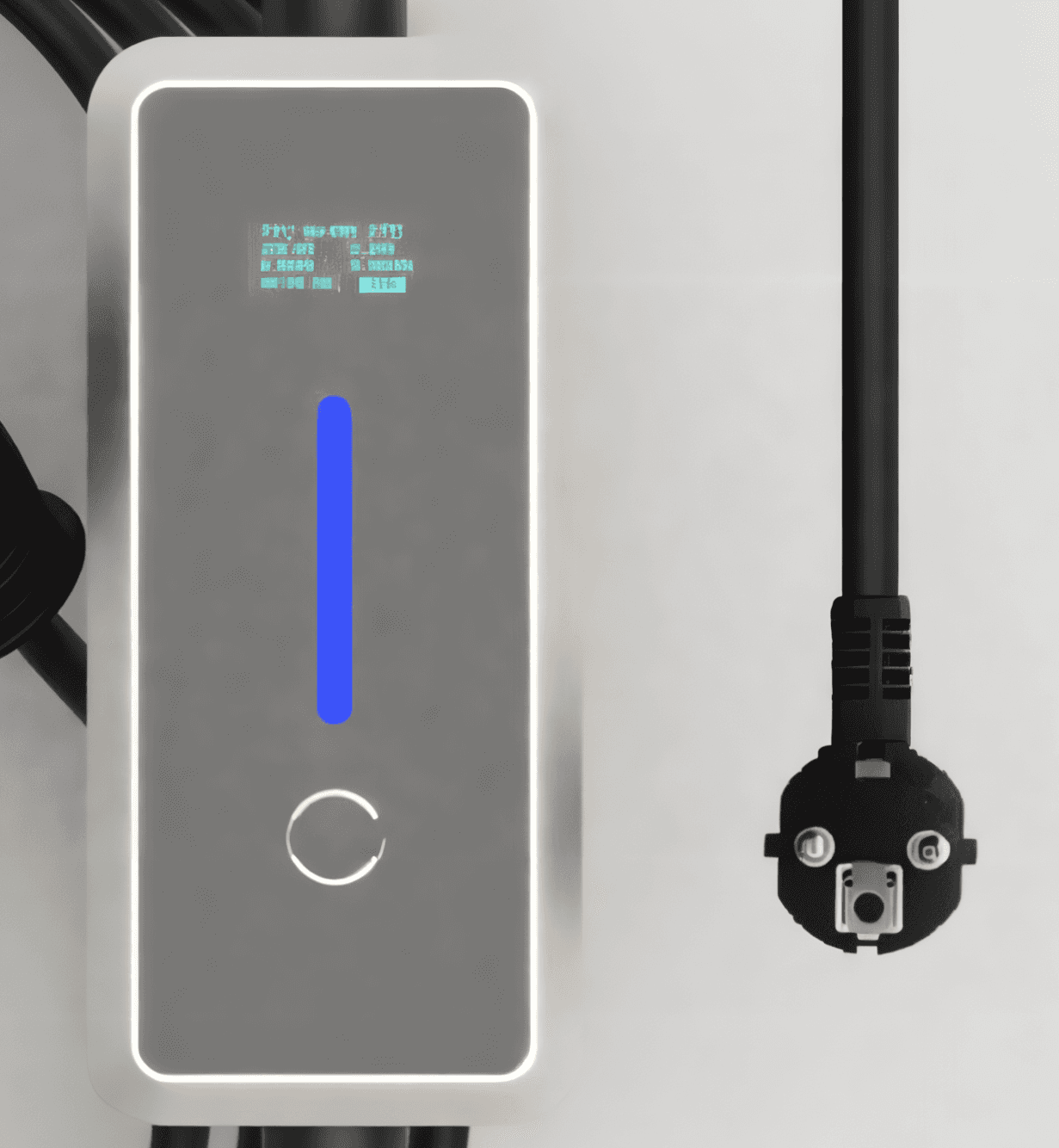

Autostart and LED ring
Start via Autostart and integrated LED ring on the unit.
- 04
Portable construction
Net weight 2.7 kg, ABS+PC housing and IP55 degree of protection.
04 Power and control
3.5kW.
Exactly where it is needed.
Power, communication and safety work as one system, matched to the needs of your installation.
05 Specifications
Everything you need.
Nothing you don't.

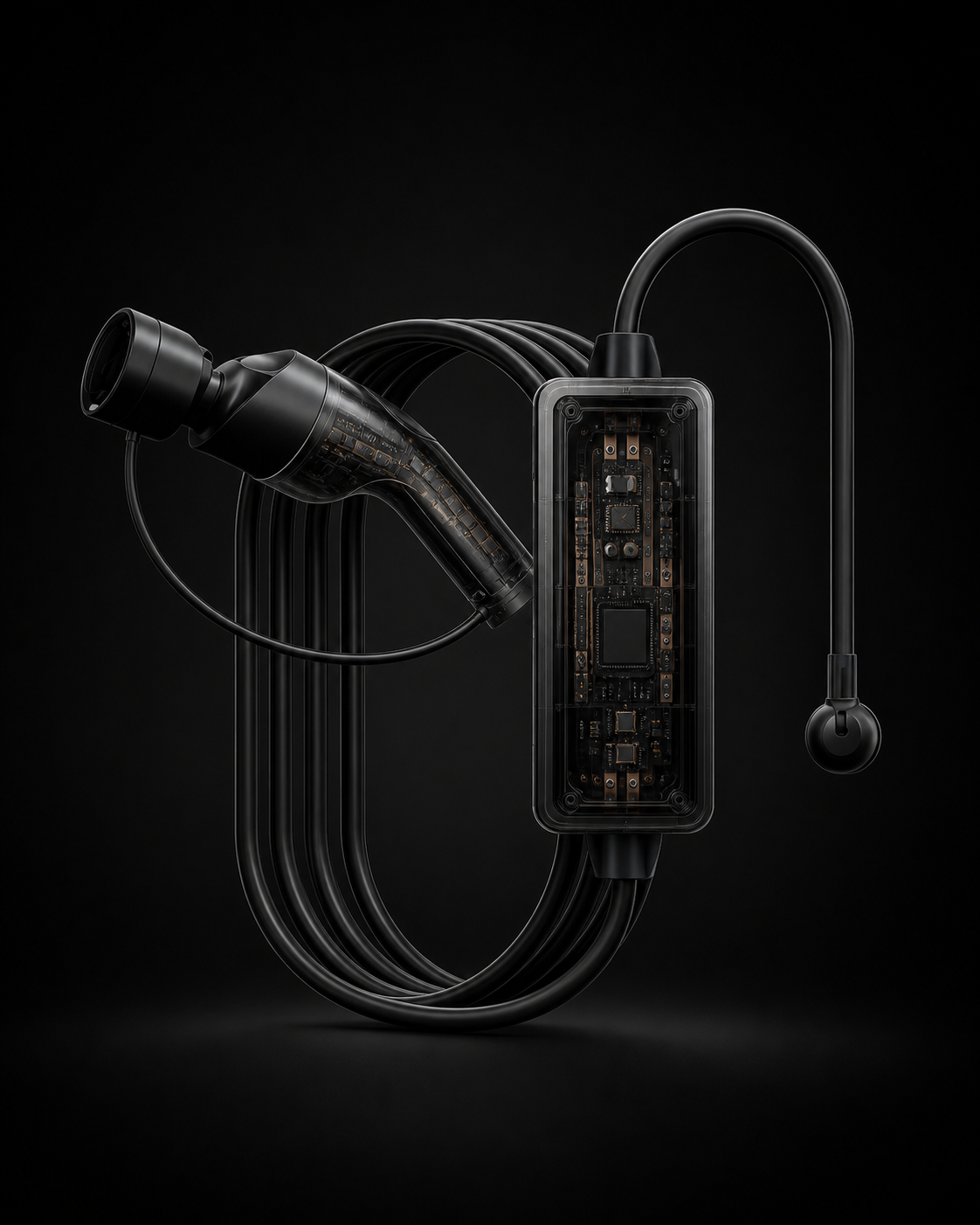

The Pulsar's technical data, organized for quick reading and accurate assessment.
01ElectricalPower delivery
- Charging capability
- 3.5 kW
- Charging mode
- Mode 2 (IEC 61851-1)
- Number of connectors
- 1 X
- Connector type
- Type 1 (SAE J1772), Type 2 (IEC 62196-2), NACS
- Fixed cable length
- 5 meters
- Power connection
- 1-phase, 16 A, 50-60 Hz, 176-264V AC
- Energy metering
- Power consumption measured on chip
- Identification method
- Autostart
- Display
- LED ring
02ConnectivityNetwork & control
- Safety of use
- Autostart
- Installation
- Portable
- Cable length
- 5 meters
03SafetyProtection & compliance
- Earth leakage detection
- 6 mA DC CCID
- Operating humidity
- Max. 95% non-condensing
- Enclosure protection rating
- IP55
- Fire resistance
- UL94V-0
- Certification
- CE
- Operating temperature
- -20°C to +50°C
- Compliance
- IEC 61851-1, IEC 61851-21-2
04ConstructionPhysical system
- Height
- 259 mm
- Depth
- 71 mm
- Width
- 105 mm
- Enclosure material
- ABS+PC
- Net weight
- 2.7 kg
- Gross weight
- 3.5 kg
- Installation method
- Portable
- Color
- Misty Black
06 Your own installation
Pulsar,where you need it.
Talk to the Hyperinso team about siting, power, connectivity and the management of your own installation.
Learn more about the Pulsar
