Gridlock

Charging made simple.

Powerful, flexible and ready for whatever you ask of it, the Gridlock AC 7/11/22 kW brings real innovation to charging in commercial spaces. Its mix of high performance and smart technology suits business installations of any size.

Designed
from the inside out.
Explore the product

01 Overview

Misty Black
Wall or pole mounting

Flexible power for
two connection points.

The Gridlock lets you choose between a single-phase or three-phase connection, with dynamic load balancing and smart energy management over Wi-Fi, Bluetooth or 4G LTE. A solid build and a 5-inch touchscreen combine practicality with a refined finish. Choose it and upgrade your business in a single move.

Maximum power
22kW
Charging outputs
02outputs
Protection
IP55enclosure
Net weight
6kg

02 Design

One system.
Two parallel flows.

The Gridlock serves two vehicles and matches the available power to what a modern commercial installation actually needs.

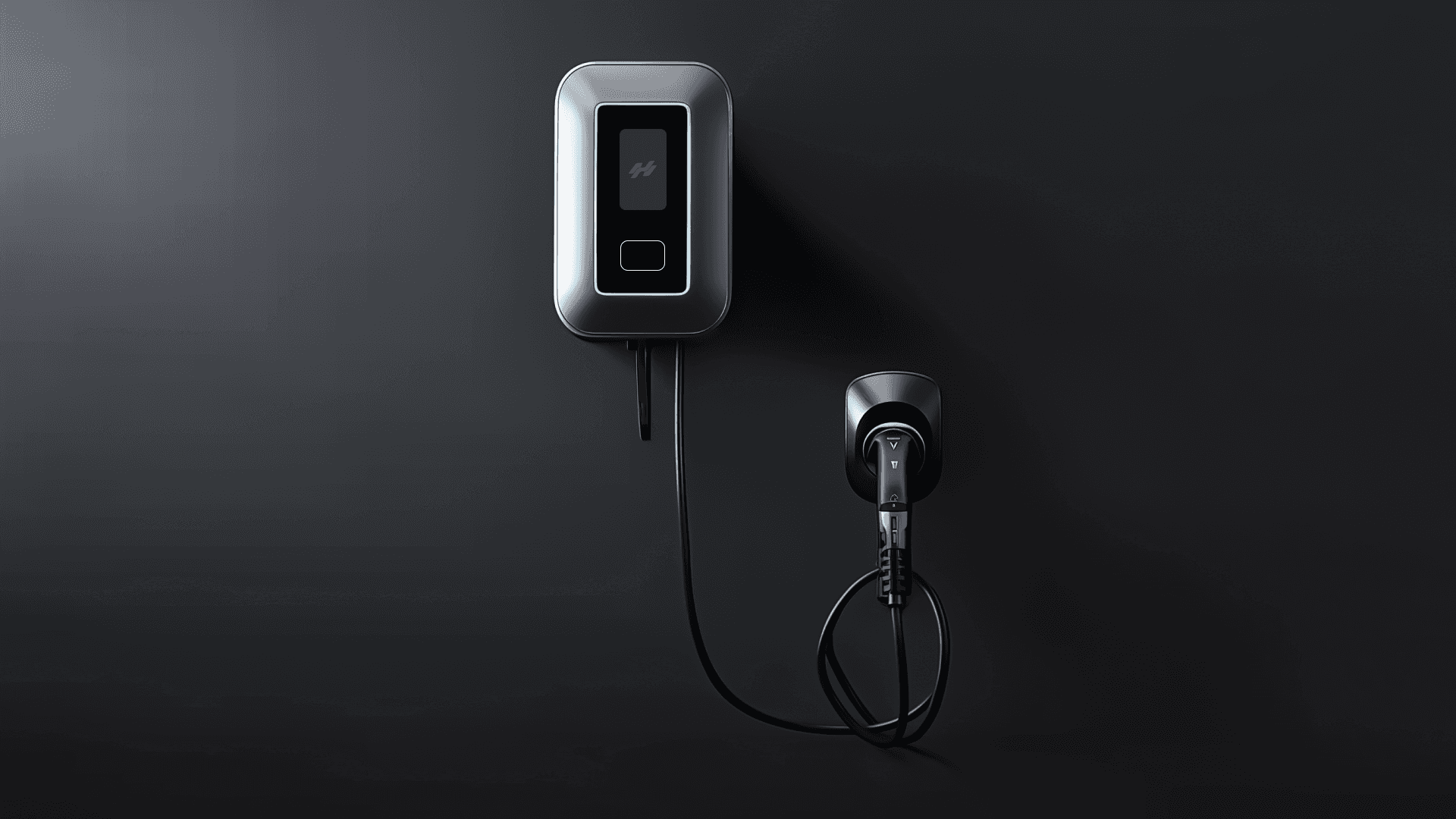

The Gridlock in full 3D view, with its screen, cable and connector holster

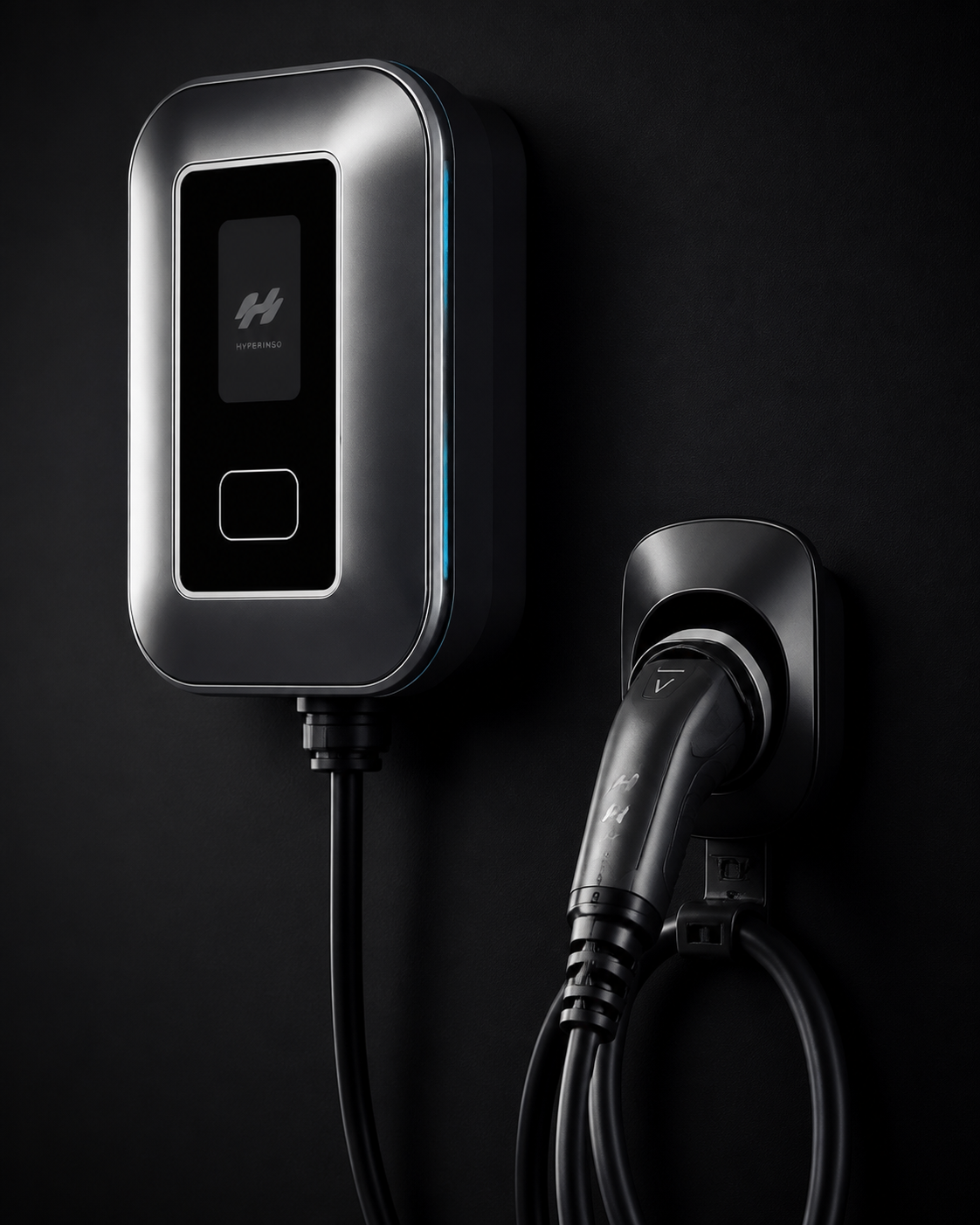

Close view of the Gridlock's screen, side control and separate connector holster

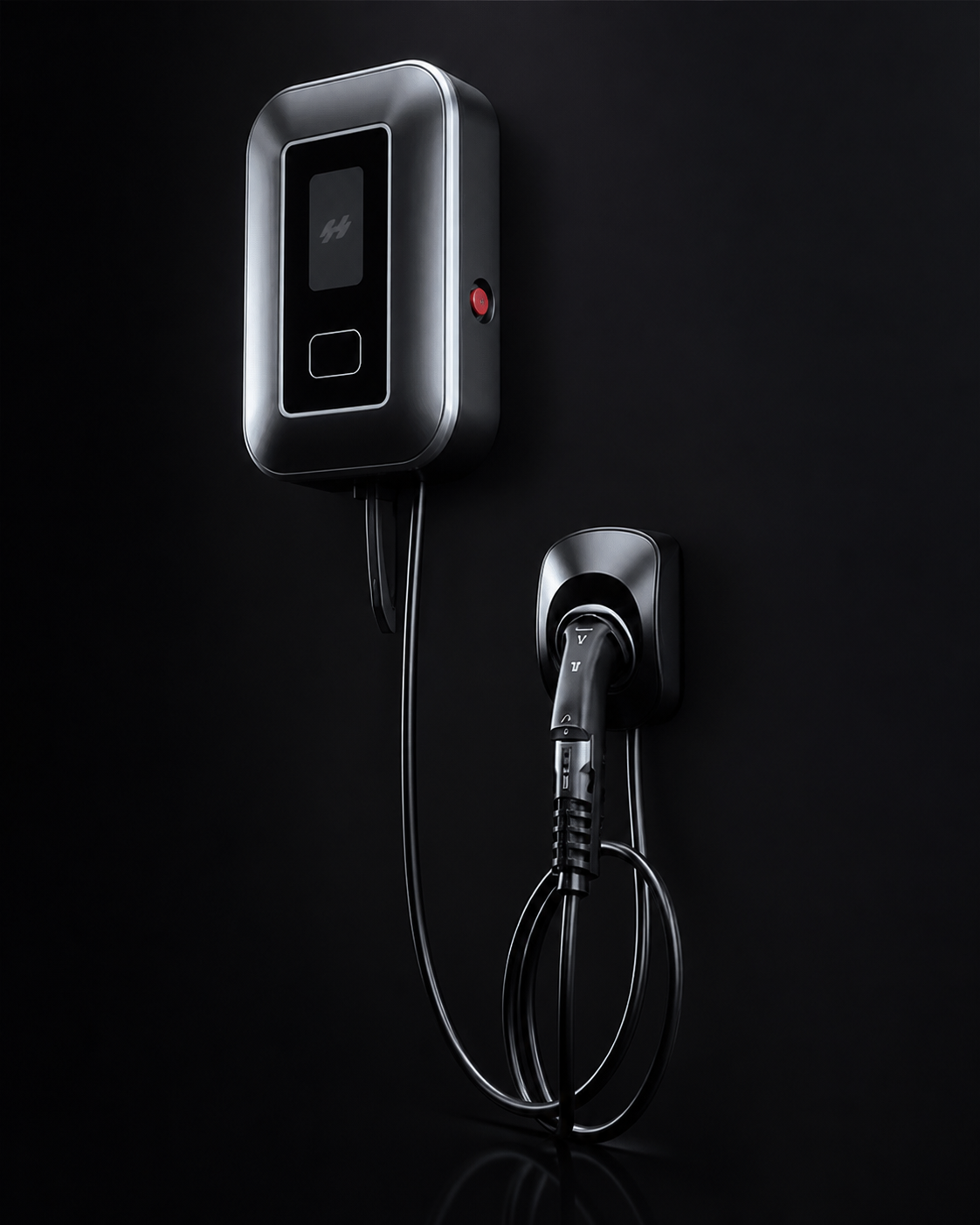

Side view of the Gridlock, showing the depth of the enclosure and the cable run

03 Technology

Management that
scales with you.

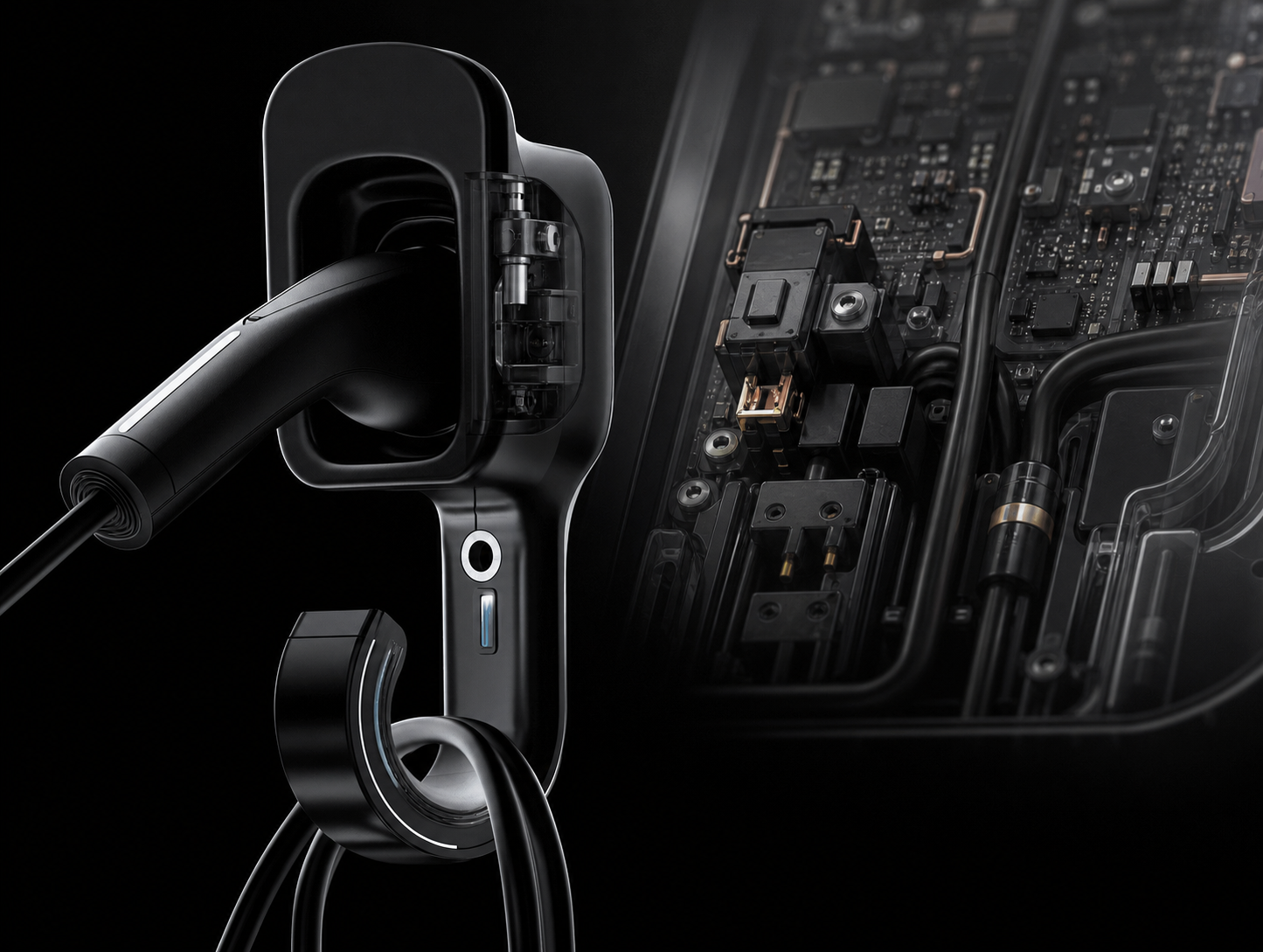

Conceptual technical cutaway of the Gridlock's construction and components
Conceptual technical illustration · Gridlock
  1. 01

    7 / 11 / 22 kW

    Mode 3, with single-phase or three-phase power per configuration.

  2. 02

    Two connection points

    Two connectors and a fixed 5 m cable.

  3. 03

    5-inch touchscreen

    Identification via Autostart, PIN or RFID card.

  4. 04

    Networking and management

    OCPP 1.6, optional Wi‑Fi, Bluetooth 4.0 and 4G LTE, as well as an RS485 interface.

04 Power and control

22kW.
Exactly where it is needed.

Power, communication and safety work as one system, matched to the needs of your installation.

OCPP 1.6Wi-Fi / BluetoothRS485Autostart / Password / RFID card

05 Specifications

Everything you need.
Nothing you don't.

The Gridlock's technical data, organized for quick reading and accurate assessment.

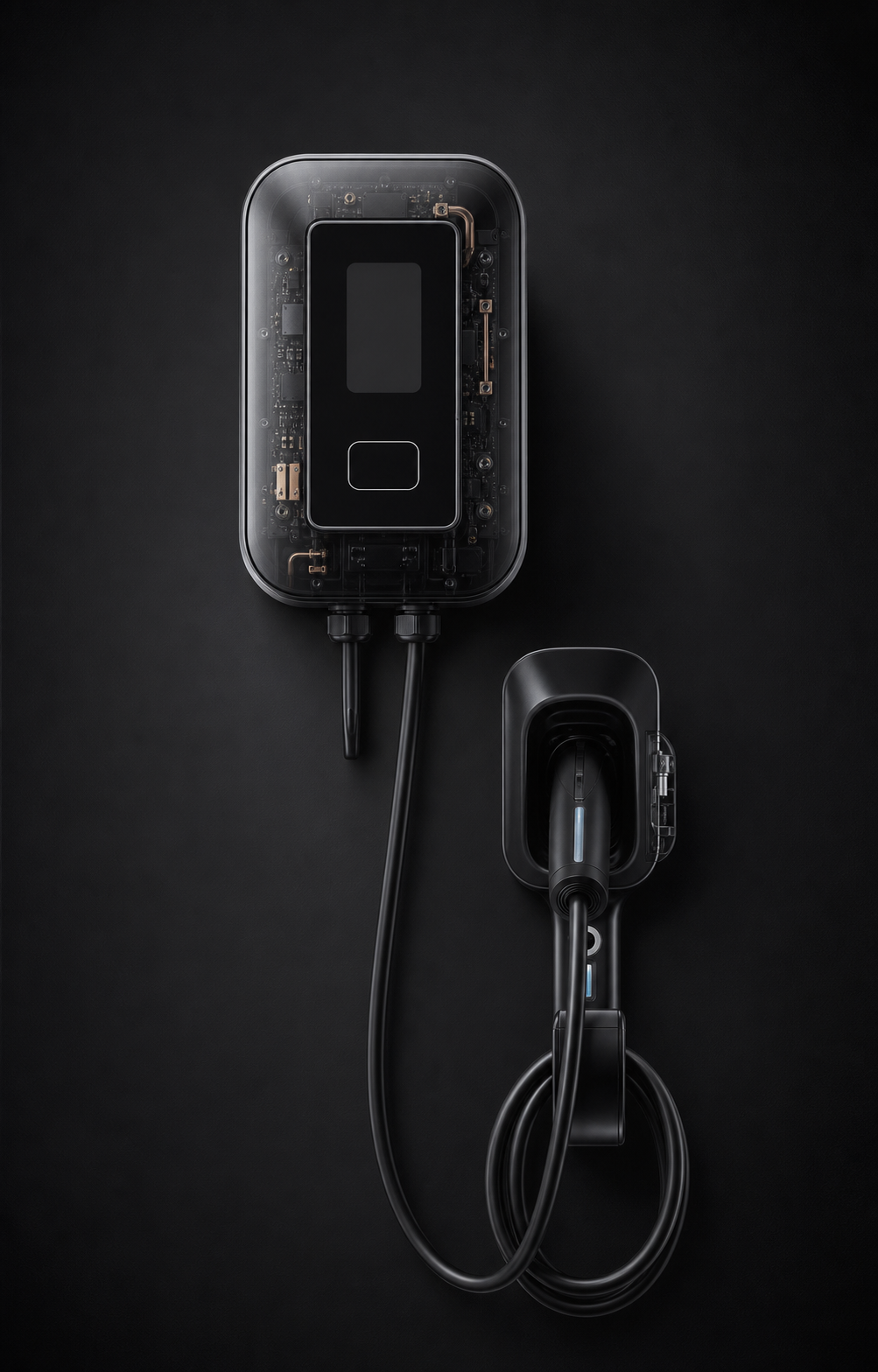

The full Gridlock on a dark background
GridlockProfessional EV charging system
01ElectricalPower delivery
Charging capability
7/11/22 kW
Charging mode
Mode 3
Number of connectors
2 X
Connector type
Type 1 (SAE J1772), Type 2 (IEC 62196-2), NACS
Fixed cable length
5 meters
Power connection
1-phase / 3-phase, 176-264 V AC / 400 V AC, 16 A / 32 A, 50-60 Hz
Energy metering
Power consumption measured on chip
Identification method
Autostart / Password / RFID card
Display
5-inch Touch Screen
02ConnectivityNetwork & control
Wireless connection
Wi-Fi / Bluetooth 4.0 (Optional)
Mobile network
4G LTE (EU) (Optional)
Serial port
RS485 interface for dynamic load balancing and solar integration
Protocol
OCPP 1.6
Positioning
GPS (Optional) / Wi-Fi
Maximum altitude
+2000m
03SafetyProtection & compliance
Earth leakage detection
6 mA DC CCID
Operating humidity
Max. 95% non-condensing
Enclosure protection rating
IP55
Fire resistance
UL94V-0
Certification
CE
Operating temperature
-20°C to +50°C
Compliance
IEC 61851-1, IEC 61851-21-2
04ConstructionPhysical system
Height
398 mm
Depth
137 mm
Width
235 mm
Enclosure material
ABS+PC
Net weight
6 kg
Gross weight
6.5 kg
Installation method
Wall / pole
Color
Misty Black

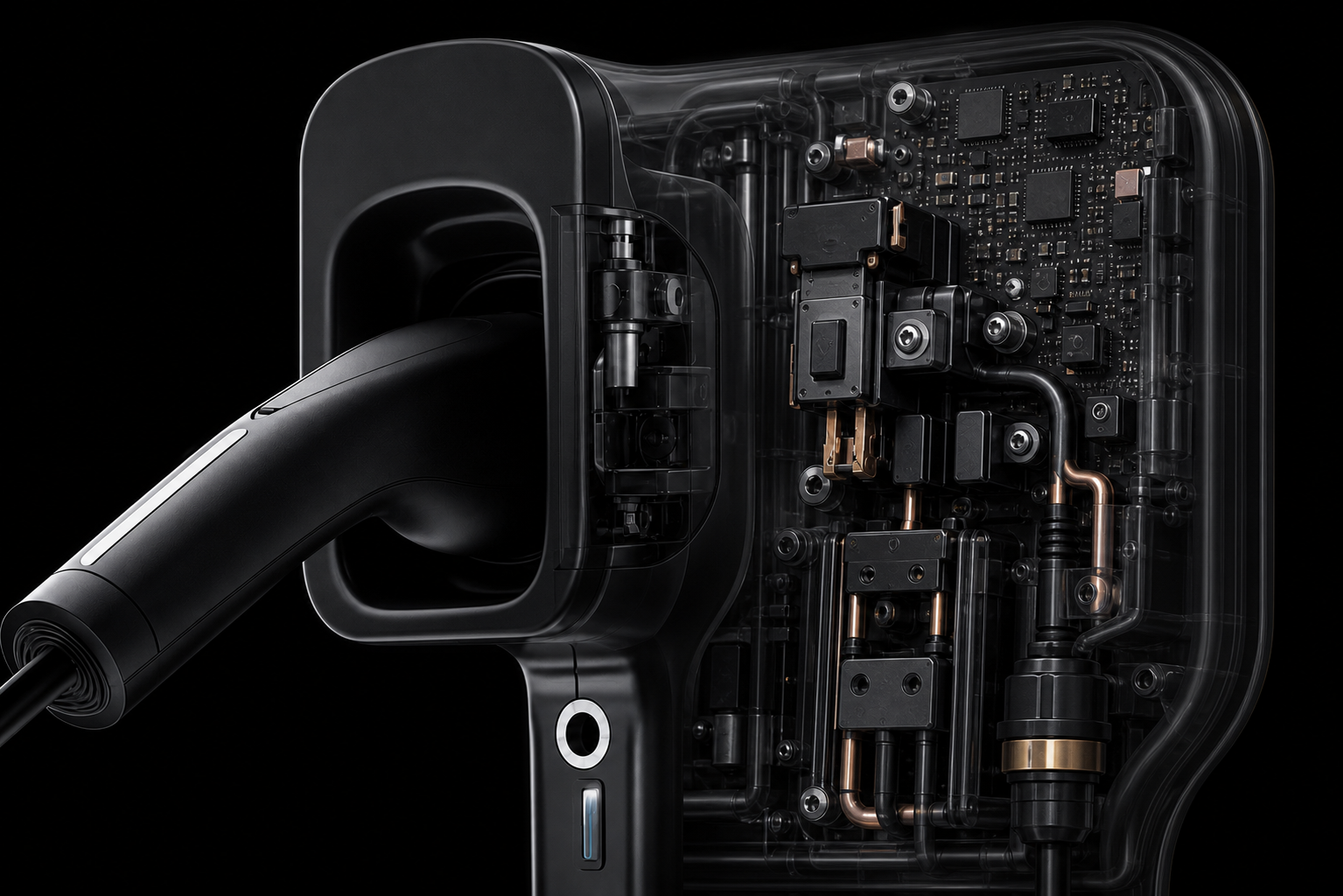

Detail of the Gridlock's construction
Dual charging outputDesigned for everyday flow

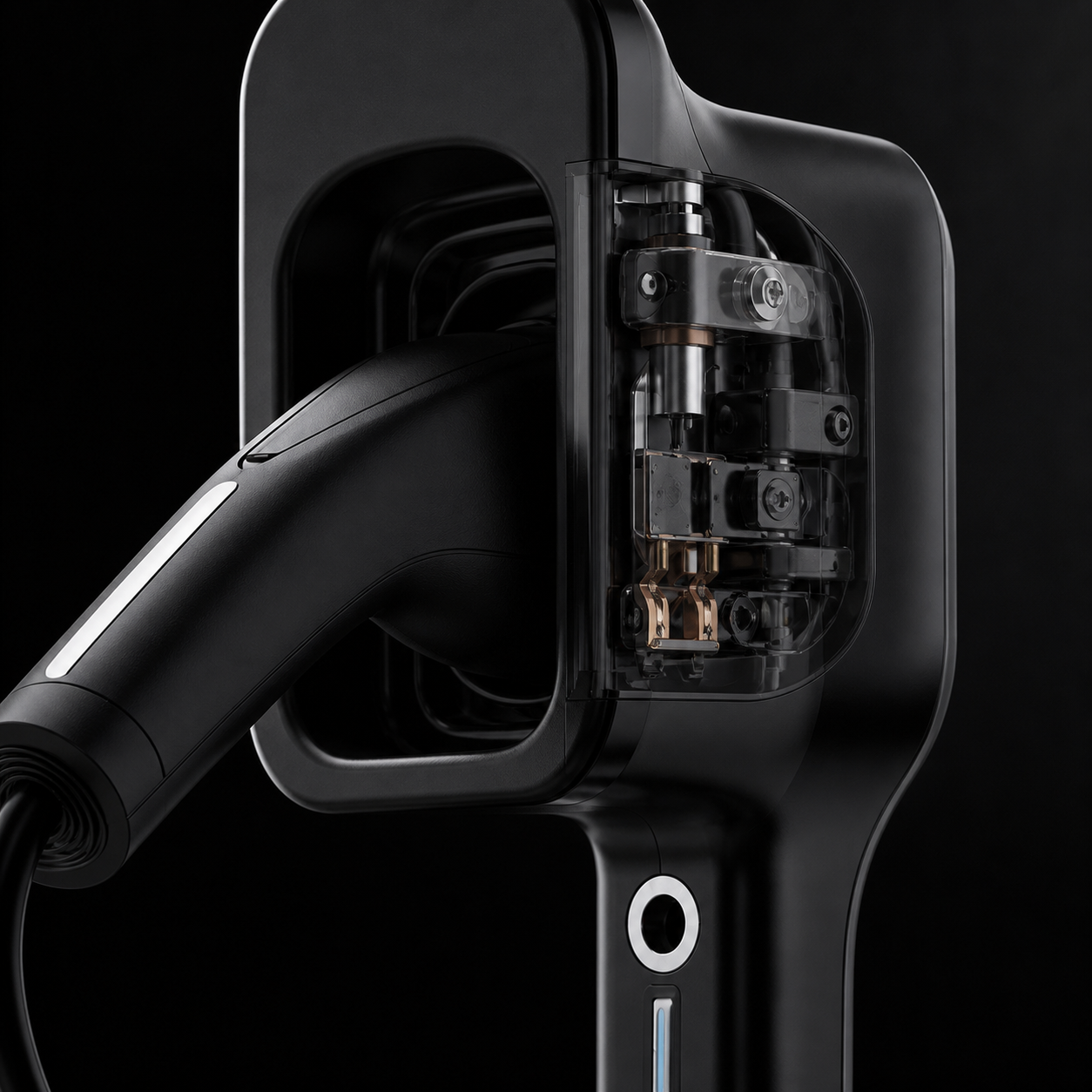

Detail of the Gridlock's interface and connector
Point of interaction5-inch touchscreen

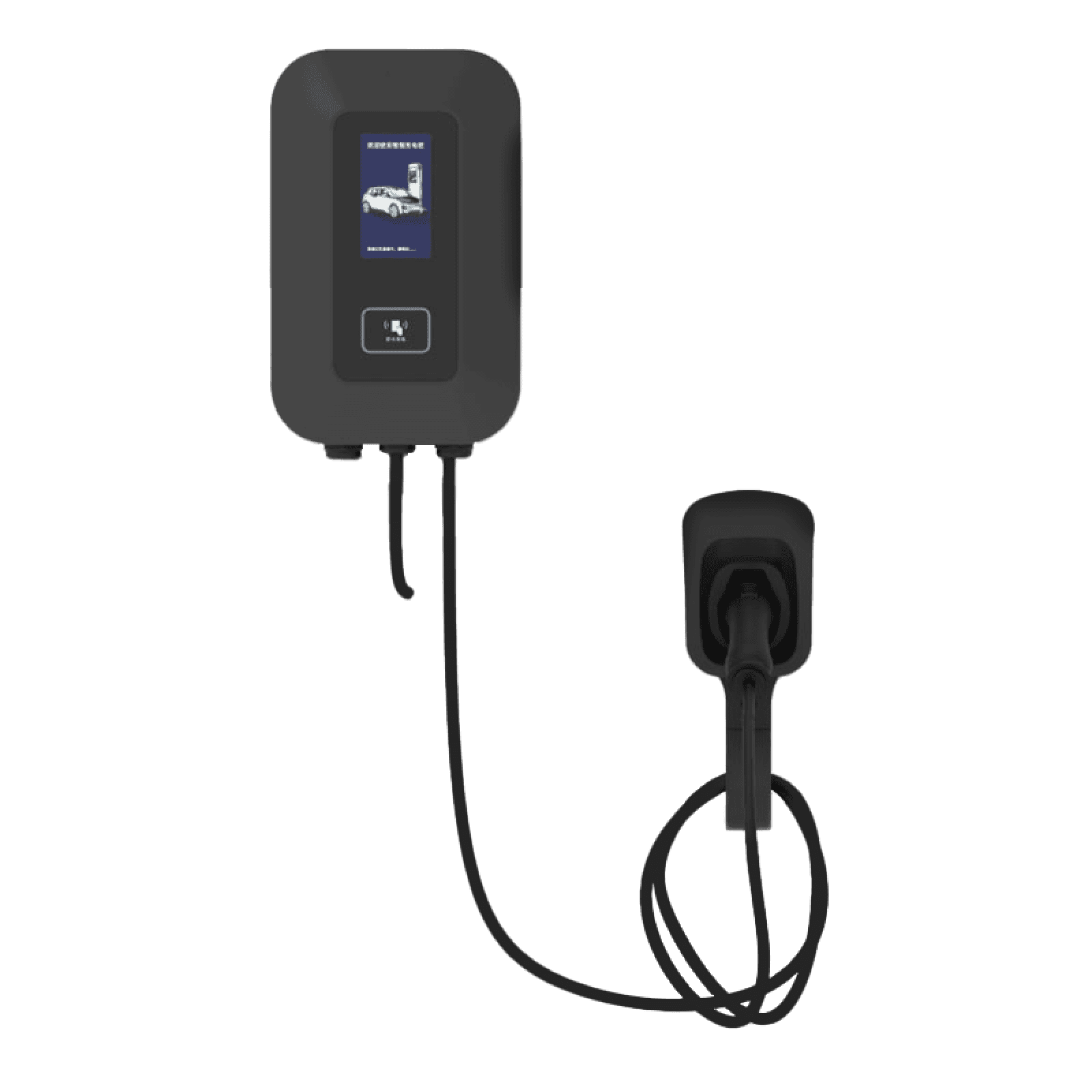

Full view of the Gridlock
For demanding installationsHyperinso

06 Your own installation

Gridlock,where you need it.

Talk to the Hyperinso team about siting, power, connectivity and the management of your own installation.

Request a proposal for the Gridlock
