Lumen

Charging and communication, in one solution.

The Lumen AC 44 kW pairs top charging performance with a screen people actually look at. Advanced technology and a built-in advertising display make charging not just functional, but absorbing.

Designed
from the inside out.
Explore the product

01 Overview

Polar White
Free-standing floor installation

Charging and digital display
in one place.

With up to 44 kW of power, dynamic load management and built-in 7-inch and 32-inch screens, the Lumen turns every charging point into a hub of energy and communication. Choose it to give your customers speed, innovation and an experience they remember.

Maximum power
44kW
Charging outputs
02outputs
Protection
IP55enclosure
Net weight
75kg

02 Design

Energy up front.
Content in full view.

The Lumen combines two charging bays with one large display surface, turning every installation into a live point of contact.

The Lumen in full 3D view, with its white arched body, large screen and charging cables

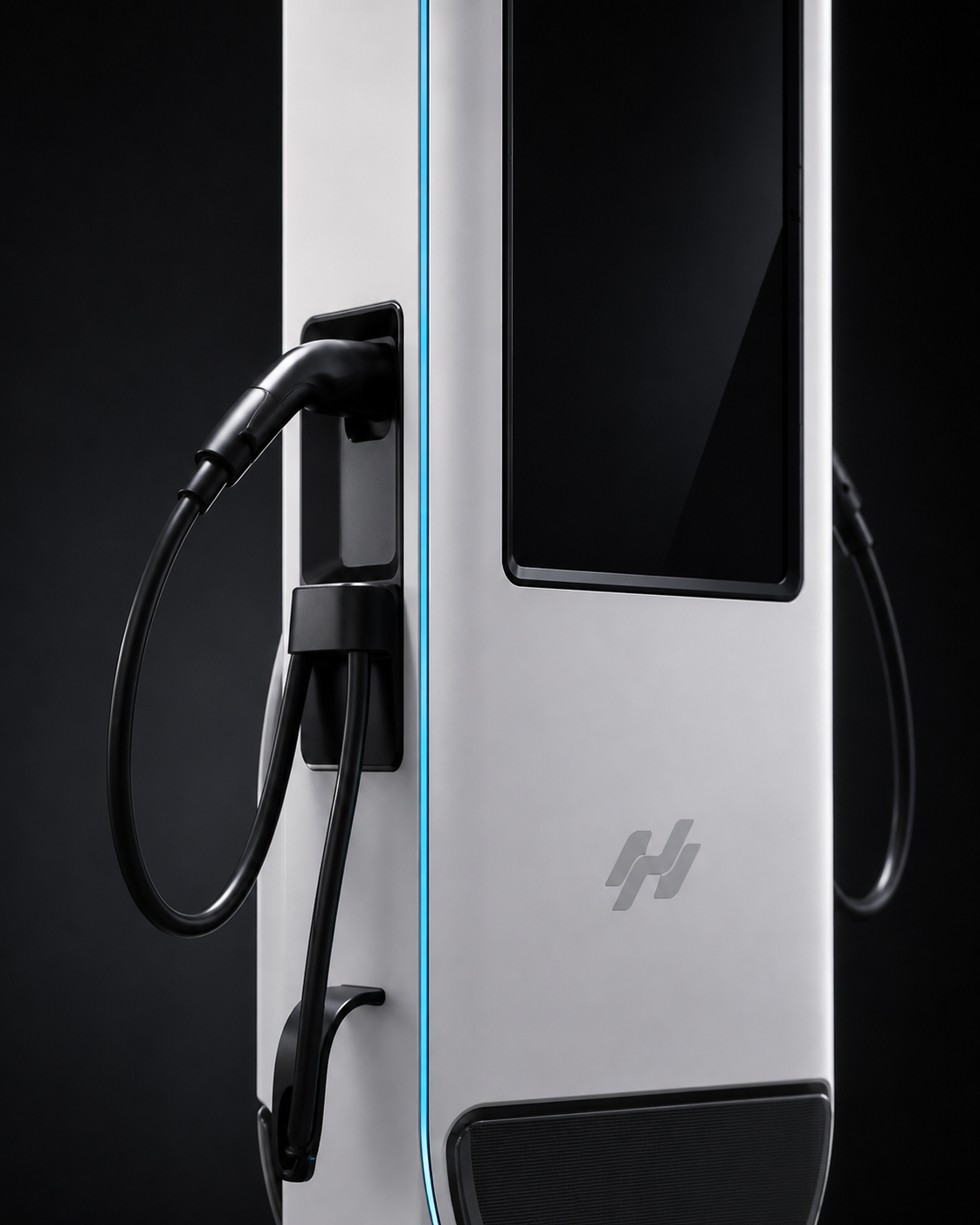

Close view of the Lumen's screen, illuminated surround and side connection
Side view of the Lumen, showing the depth of the screen, the arched enclosure and the cables

03 Technology

Two functions.
One coherent experience.

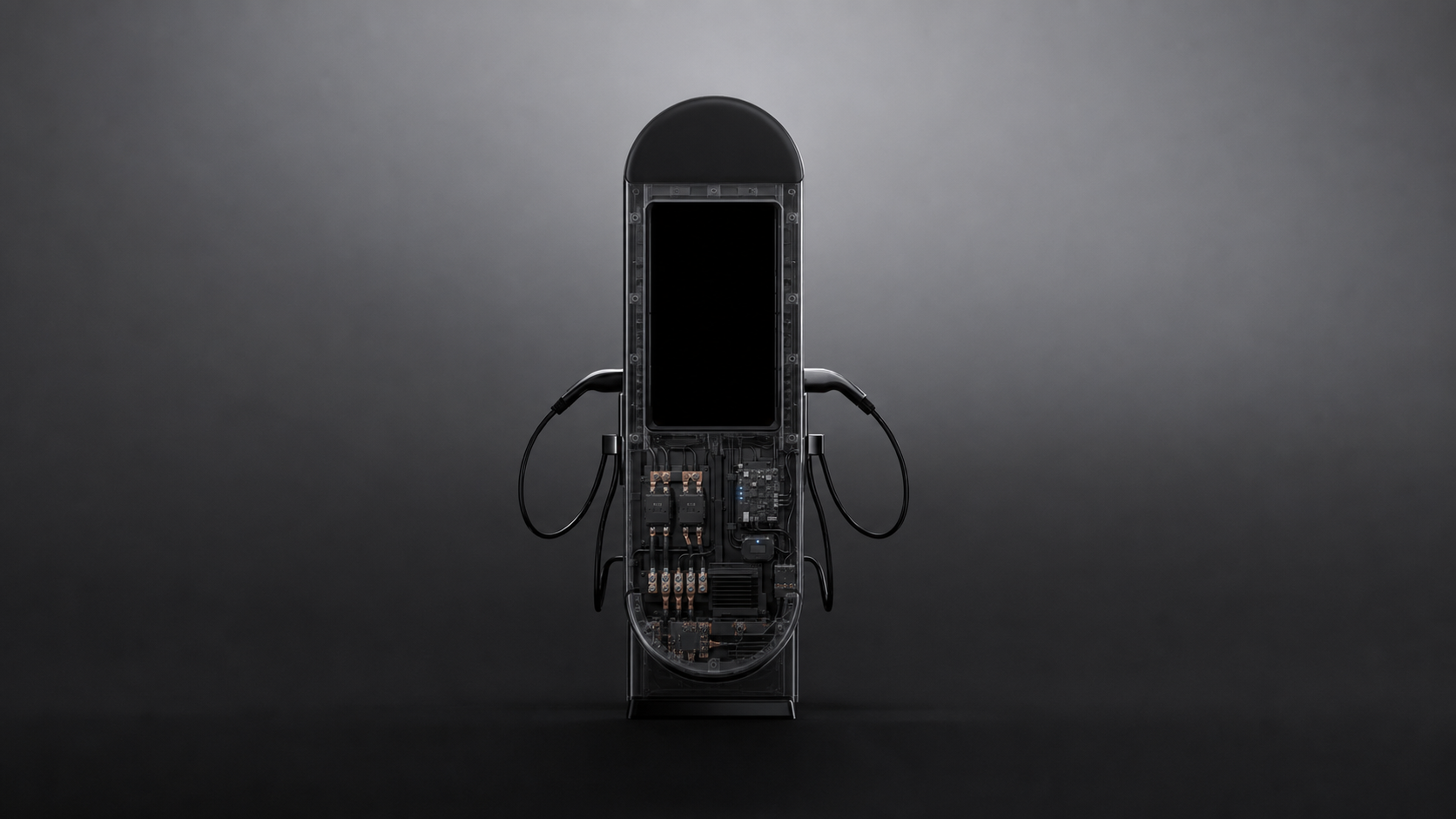

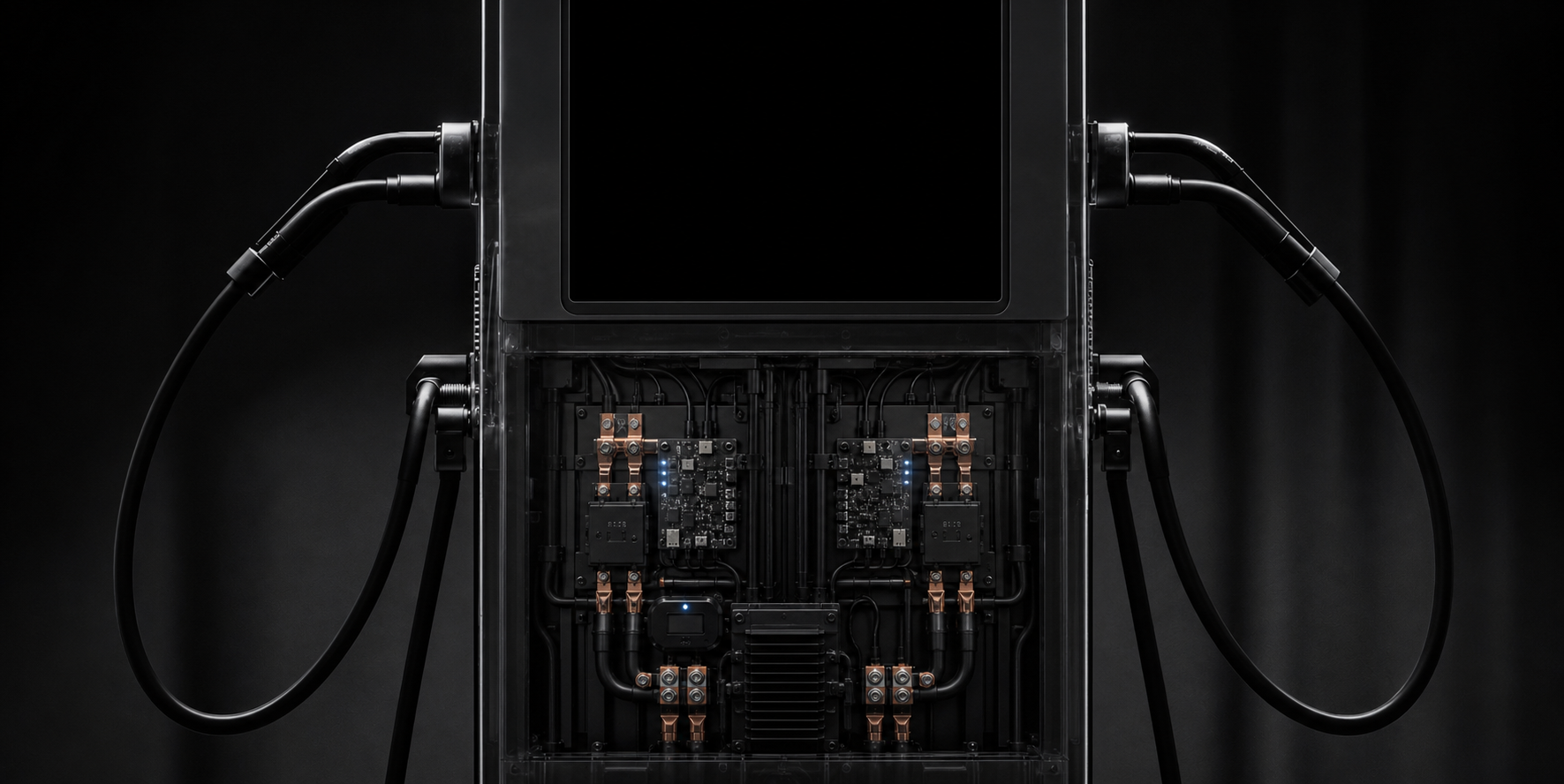

Conceptual technical cutaway of the Lumen's construction and components
Conceptual technical illustration · Lumen
  1. 01

    44 kW / Mode 3

    Three-phase supply, two connection points and a fixed 5 m cable.

  2. 02

    Two built-in screens

    A 32-inch advertising screen and a 7-inch touchscreen.

  3. 03

    Access and networking

    Autostart, code or RFID, OCPP 1.6 and optional Wi‑Fi, Bluetooth or 4G LTE.

  4. 04

    Floor-standing construction

    Metal enclosure, IP55 protection rating and Polar White finish.

04 Power and control

44kW.
Exactly where it is needed.

Power, communication and safety work as one system, matched to the needs of your installation.

OCPP 1.6Wi-Fi / BluetoothRS485Autostart / Password / RFID card

05 Specifications

Everything you need.
Nothing you don't.

The Lumen's technical data, organized for quick reading and accurate assessment.

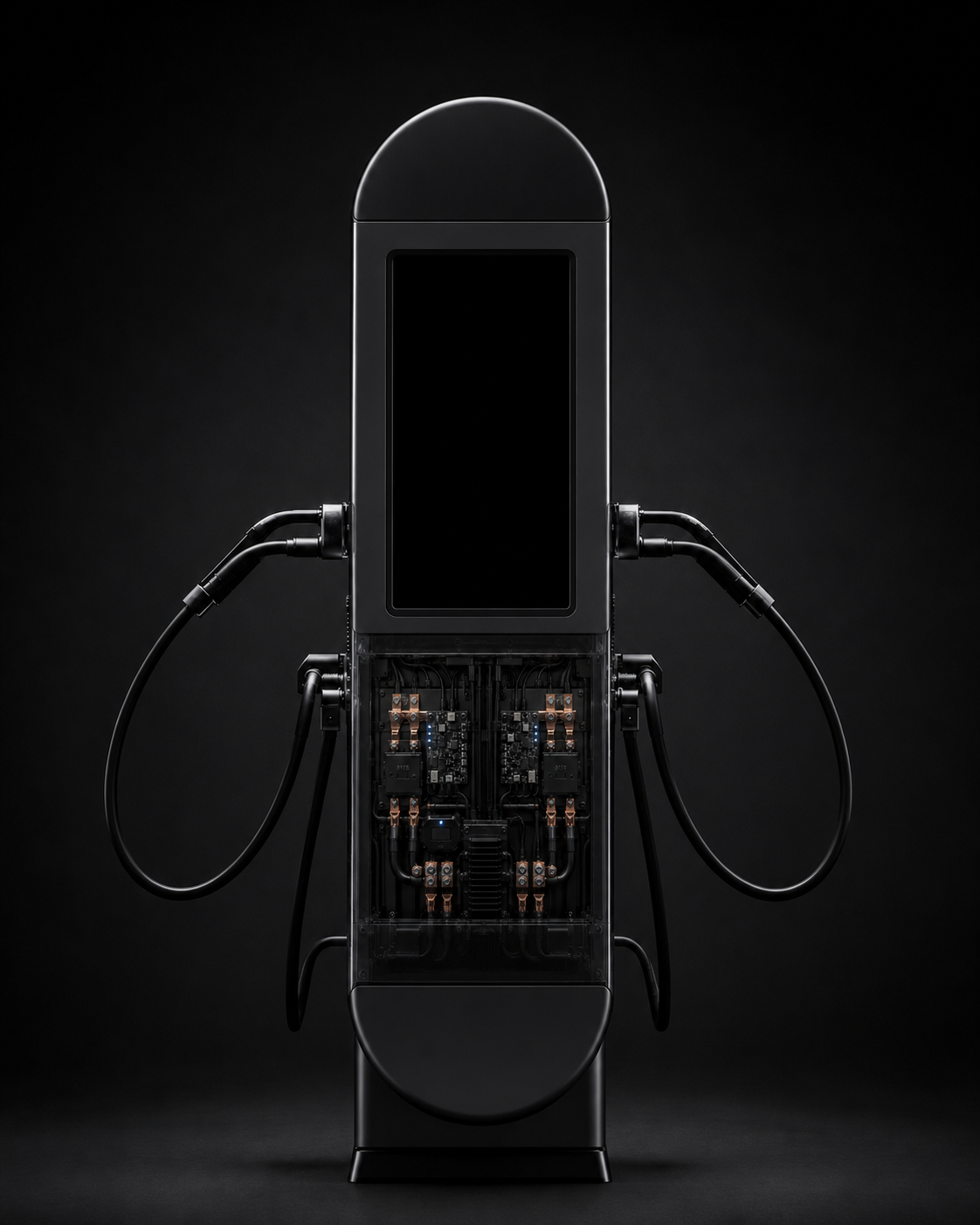

The full Lumen on a dark background
LumenCharging and communication system
01ElectricalPower delivery
Charging capability
44 kW
Charging mode
Mode 3
Number of connectors
2 X
Connector type
Type 1 (SAE J1772), Type 2 (IEC 62196-2), NACS
Fixed cable length
5 meters
Power connection
3-phase, 400/480 V AC, 32 A / 32 A * 2, 50-60 Hz
Energy metering
Optional MID Meter
Identification method
Autostart / Password / RFID card
Display
32-inch Advertising Screen and 7-inch Touch Screen
02ConnectivityNetwork & control
Wireless connection
Wi-Fi / Bluetooth 4.0 (Optional)
Mobile network
4G LTE (EU) (Optional)
Serial port
RS485 interface for dynamic load balancing and solar integration
Protocol
OCPP 1.6
Positioning
GPS (Optional) / Wi-Fi
Maximum altitude
+2000m
03SafetyProtection & compliance
Earth leakage detection
6 mA DC CCID
Operating humidity
Max. 95% non-condensing
Enclosure protection rating
IP55
Fire resistance
UL94V-0
Certification
CE
Operating temperature
-20°C to +50°C
Compliance
IEC 61851-1, IEC 61851-21-2
04ConstructionPhysical system
Height
1,935 mm
Depth
305 mm
Width
707.5 mm
Enclosure material
Sheet Metal
Net weight
75 kg
Gross weight
100 kg
Installation method
Floor standing all-in-one stand-alone unit
Color
Polar White

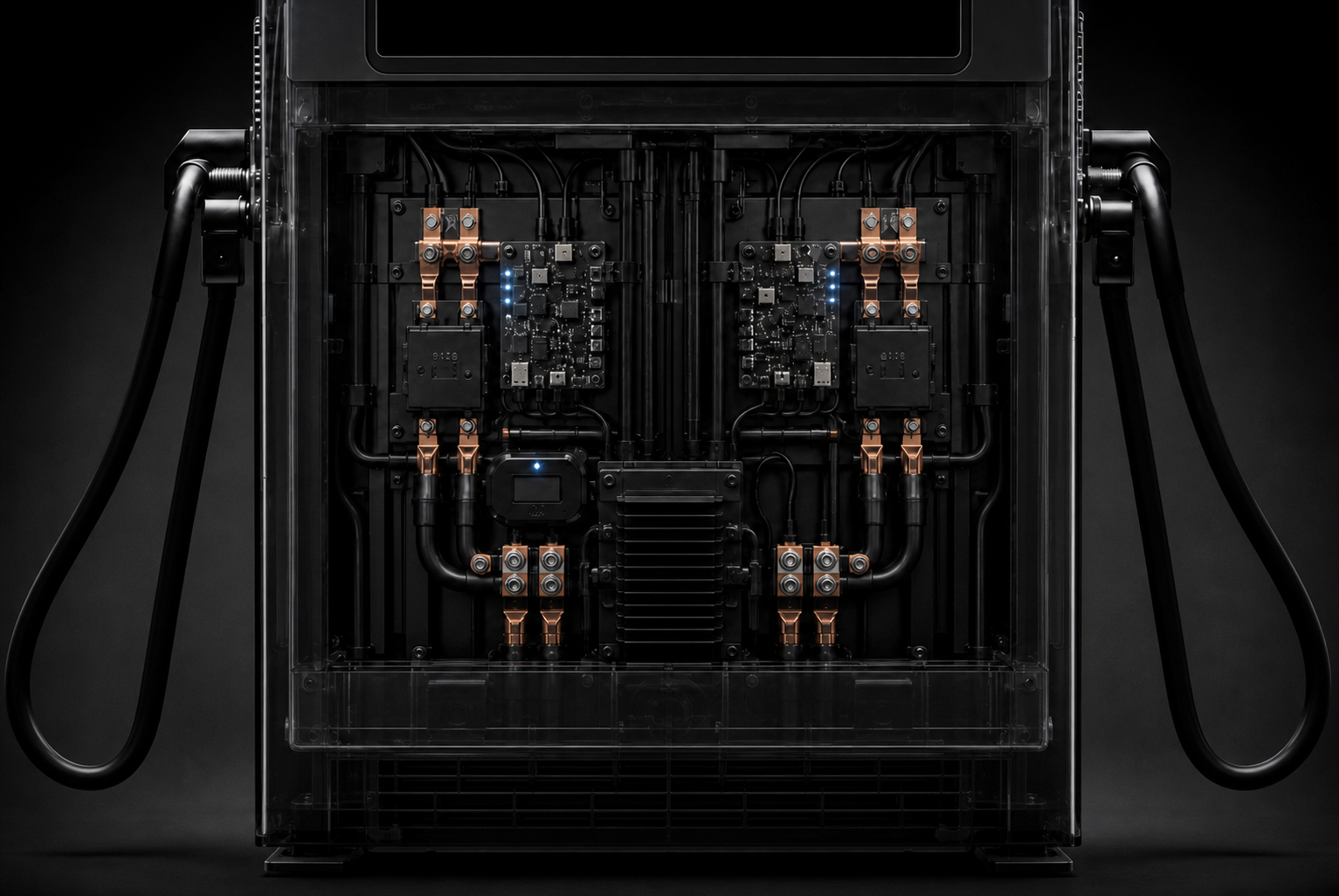

Detail of the Lumen's construction
Dual 44 kW chargingDesigned for everyday flow

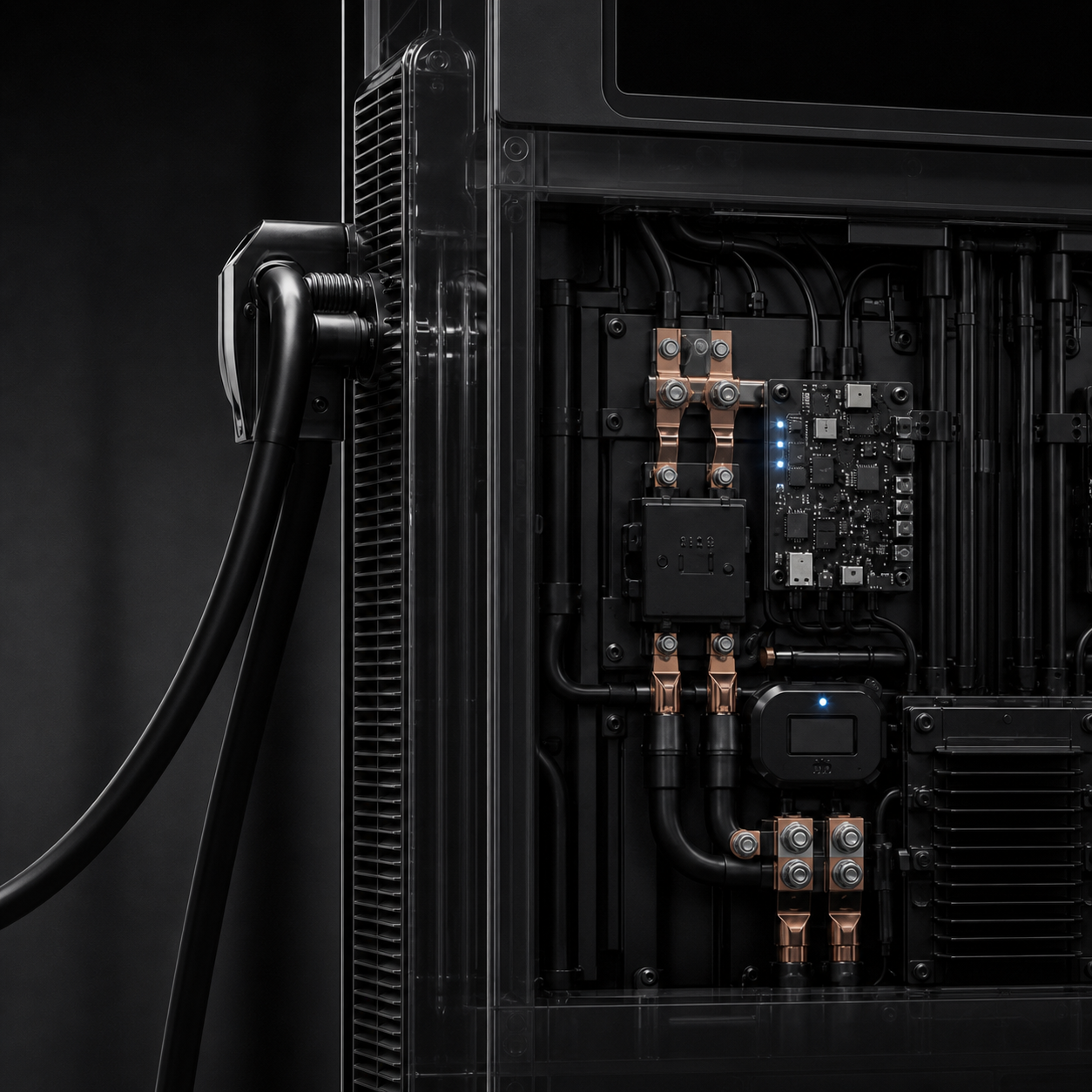

Detail of the Lumen's interface and connector
Point of interaction32-inch display
Full view of the Lumen
Energy and communicationHyperinso

06 Your own installation

Lumen,where you need it.

Talk to the Hyperinso team about siting, power, connectivity and the management of your own installation.

Request a proposal for the Lumen
