Nexus

Advanced technology, at your fingertips.

The Nexus AC 11/22kW is the ultimate solution for commercial applications that require high performance and reliability. With premium features and smart technology, it connects the future of charging to your business.

Designed
from the inside out.
Explore the product

01 Overview

Misty Black
Wall or pole mounting

11 or 22 kW in one
three-phase unit.

Nexus combines 11 or 22 kW three-phase charging, 5 m fixed cable, Autostart, LED ring and OCPP 1.6 in one wall-mounted unit with IP55 protection.

Maximum power
22kW
Charging outputs
01output
Protection
IP55enclosure
Net weight
6kg

02 Design

Clean design.
Full supervision.

Nexus connects power, data and management in a discreet wall-mounted system that adapts to any business environment.

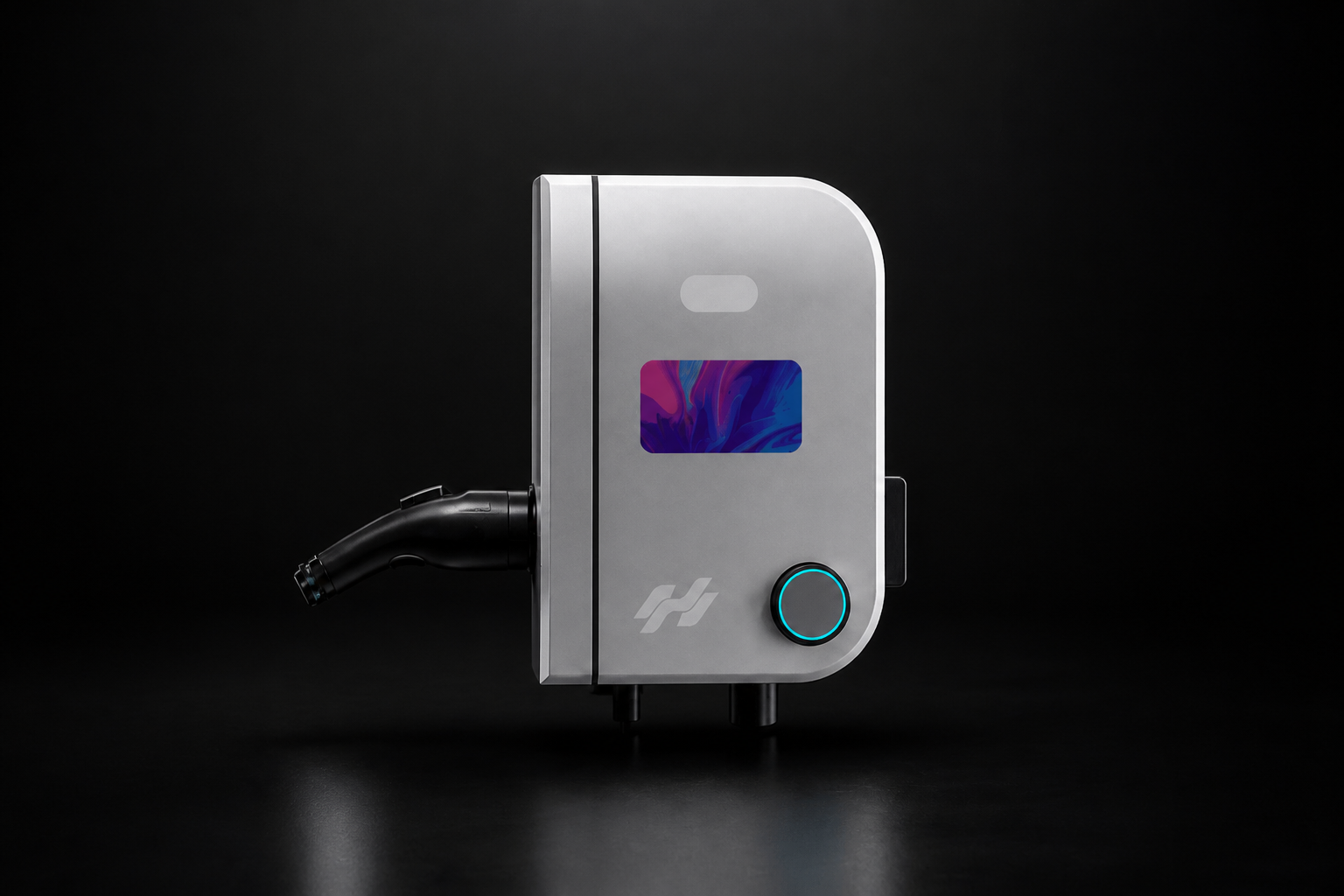

The Nexus in full 3D view with the asymmetric housing, screen and connector

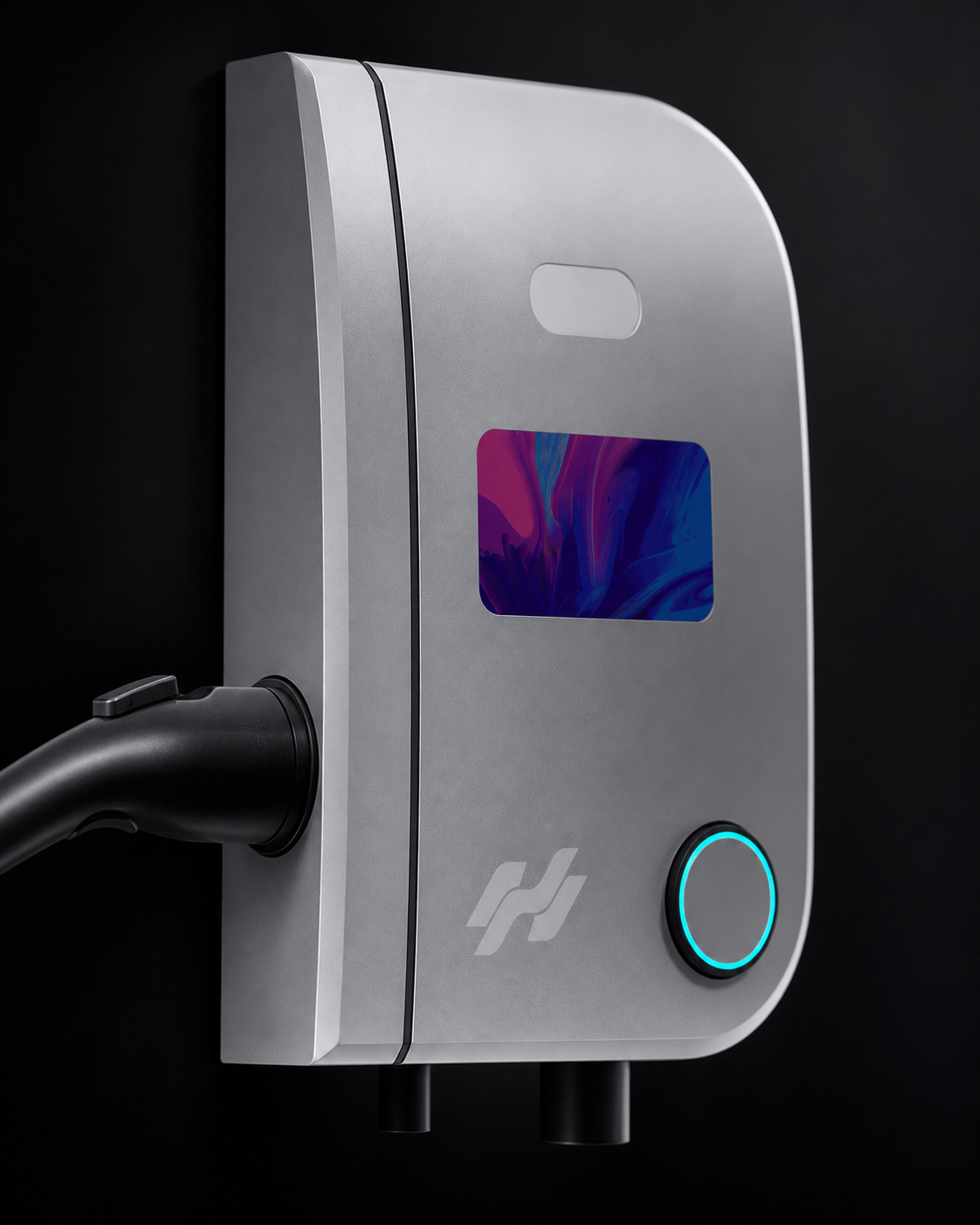

Close-up of the Nexus screen, light ring and control surface
Side view of the Nexus showing the characteristic curve of the housing and the cable

03 Technology

Control at every
charging point.

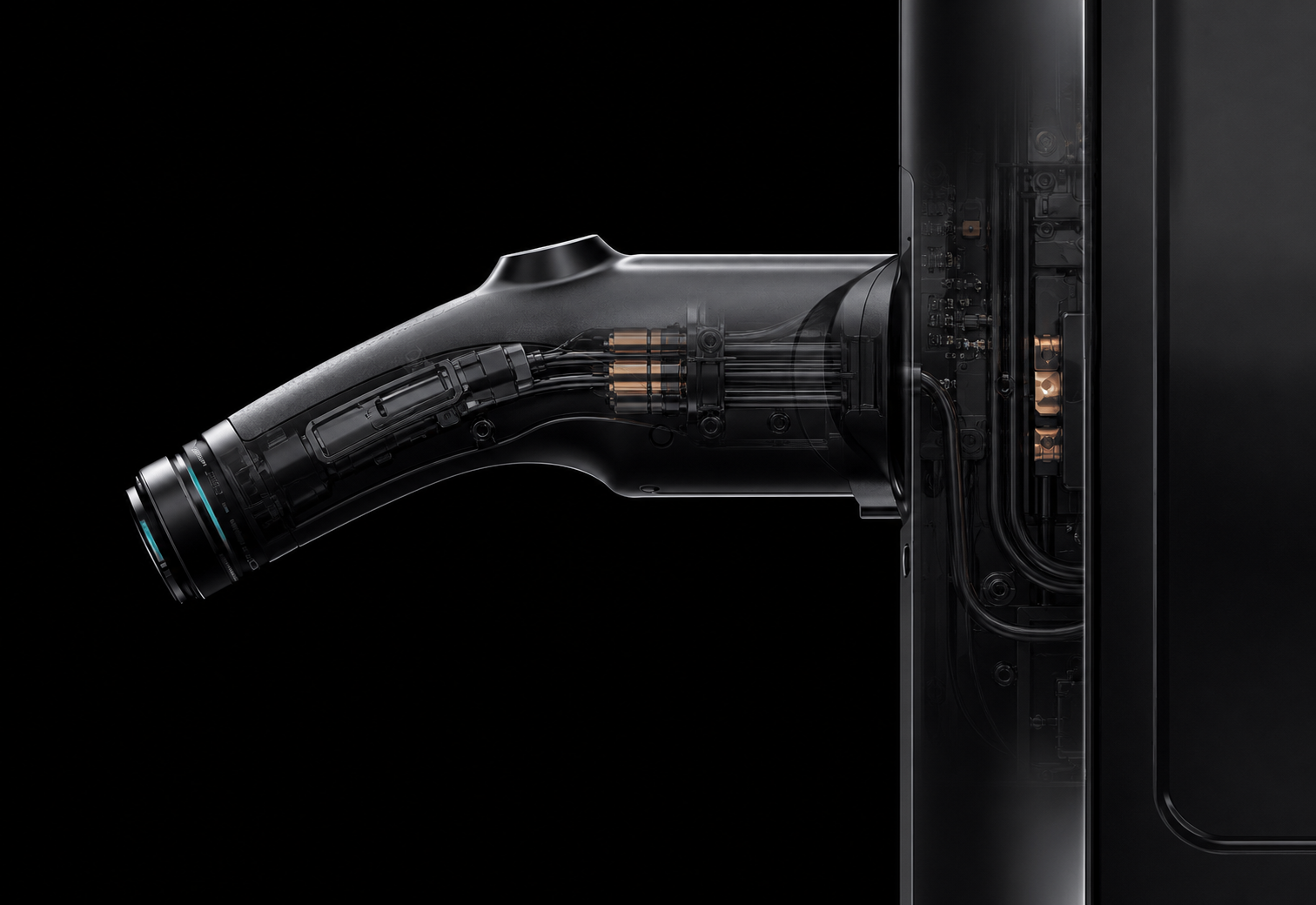

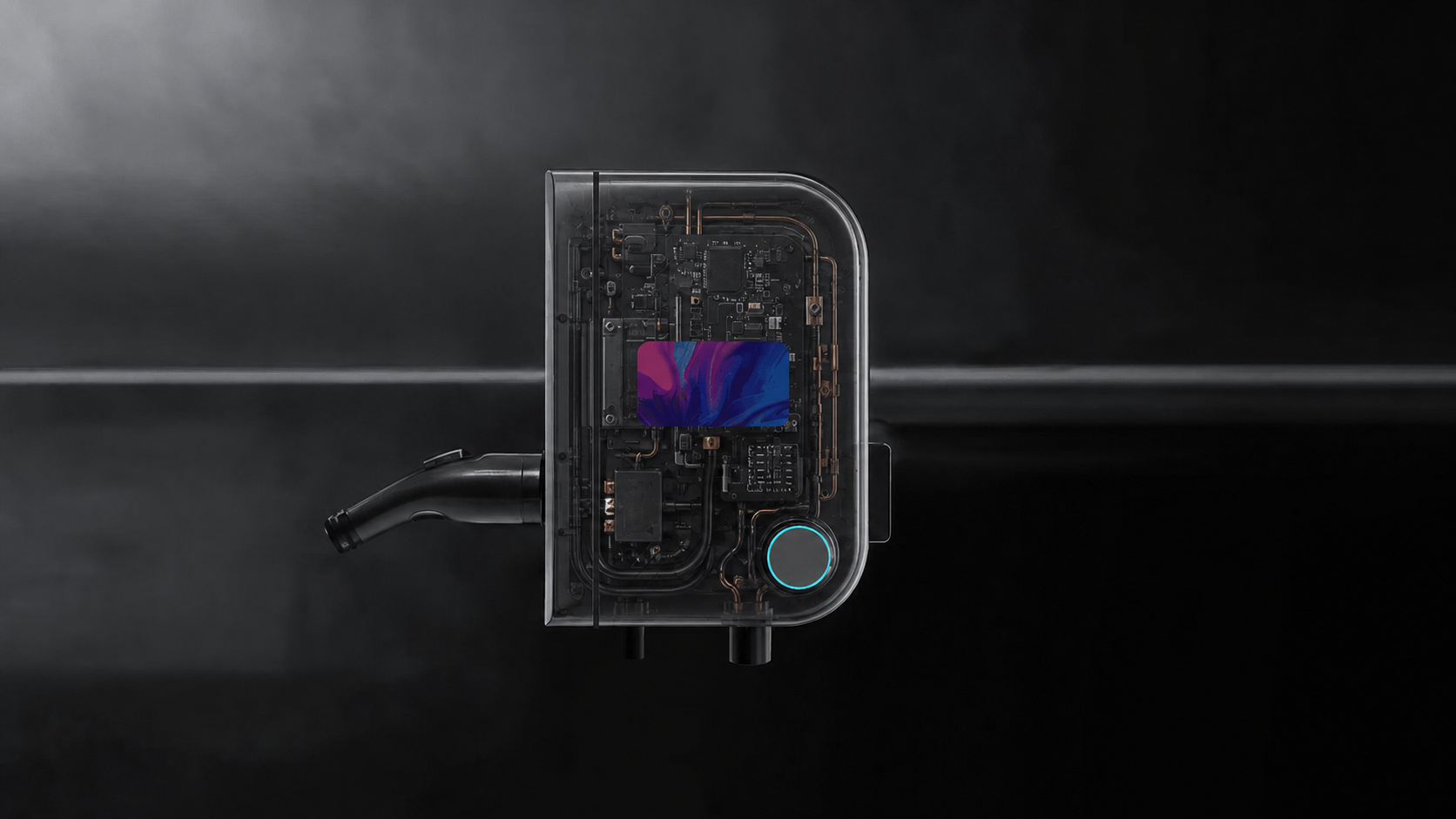

Conceptual technical cutaway of the Nexus's construction and components
Conceptual technical illustration · Nexus
  1. 01

    11 / 22 kW

    Mode 3 with a three-phase 400/480 V AC supply.

  2. 02

    One connection point

    Fixed 5 m cable, Autostart and an integrated LED ring.

  3. 03

    Metering and networking

    Optional MID meter, OCPP 1.6 and optional Wi‑Fi, Bluetooth 4.0 or 4G LTE.

  4. 04

    Wall or pillar

    Net weight of 6 kg, ABS+PC enclosure and an IP55 protection rating.

04 Power and control

22kW.
Exactly where it is needed.

Power, communication and safety work as one system, matched to the needs of your installation.

OCPP 1.6Wi-Fi / BluetoothAutostart

05 Specifications

Everything you need.
Nothing you don't.

The Nexus's technical data, organized for quick reading and accurate assessment.

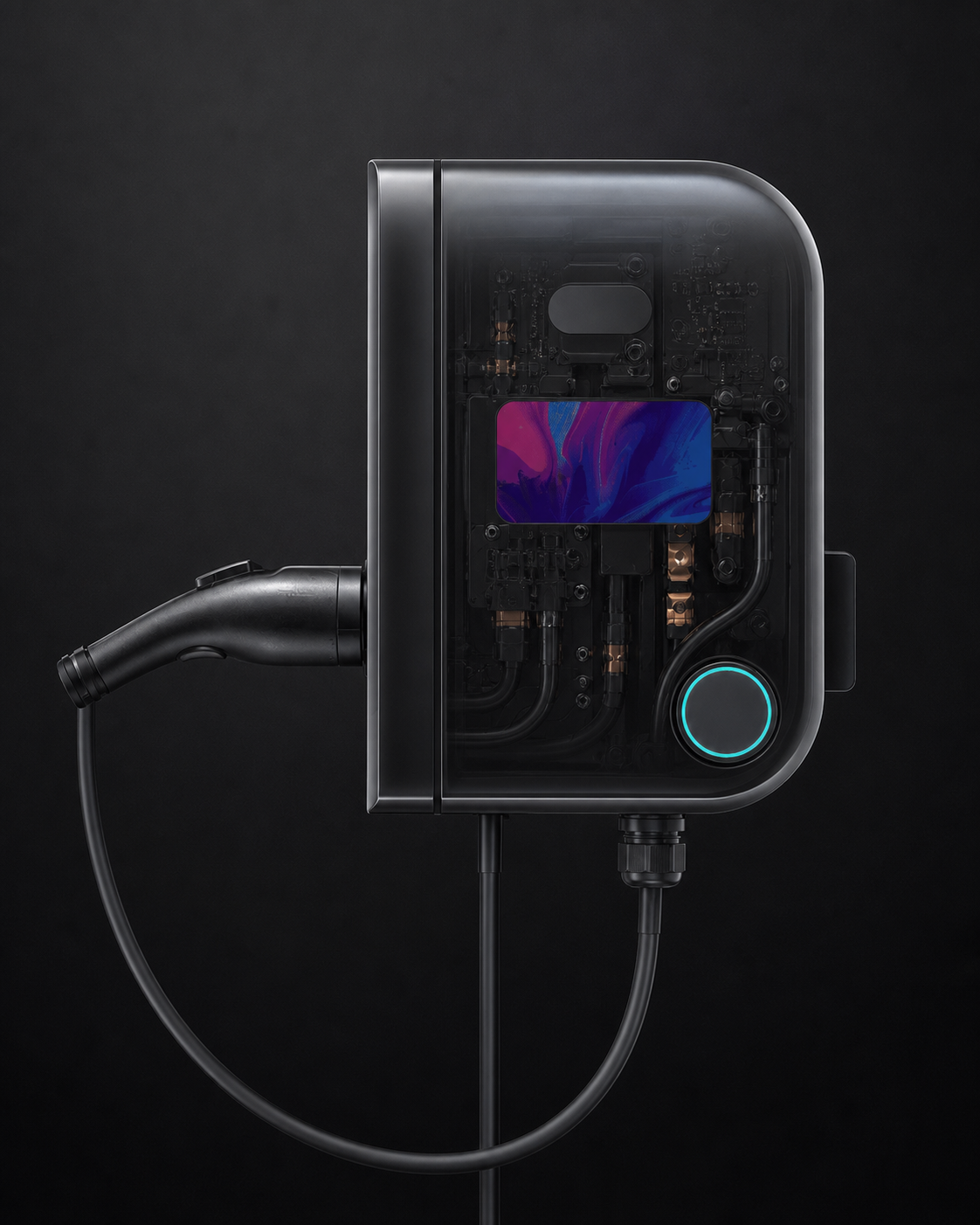

The full Nexus on a dark background
NexusNetworked EV charging system
01ElectricalPower delivery
Charging capability
11/22 kW (32/40/48/80 A)
Charging mode
Mode 3
Number of connectors
1 X
Connector type
Type 1 (SAE J1772), Type 2 (IEC 62196-2), NACS
Fixed cable length
5 meters
Power connection
3-phase, 400/480 V AC, 32/40/48/80 A, 50-60 Hz
Energy metering
Optional MID Meter
Identification method
Autostart
Display
LED ring
02ConnectivityNetwork & control
Wireless connection
Wi-Fi / Bluetooth 4.0 (Optional)
Mobile network
4G LTE (EU) (Optional)
Protocol
OCPP 1.6
Positioning
GPS (Optional) / Wi-Fi
Maximum altitude
+2000m
03SafetyProtection & compliance
Earth leakage detection
6 mA DC CCID
Operating humidity
Max. 95% non-condensing
Enclosure protection rating
IP55
Fire resistance
UL94V-0
Certification
CE
Operating temperature
-20°C to +50°C
Compliance
IEC 61851-1, IEC 61851-21-2
04ConstructionPhysical system
Height
453 mm
Depth
165 mm
Width
322 mm
Enclosure material
ABS+PC
Net weight
6 kg
Gross weight
6.5 kg
Installation method
Wall / pole
Color
Misty Black

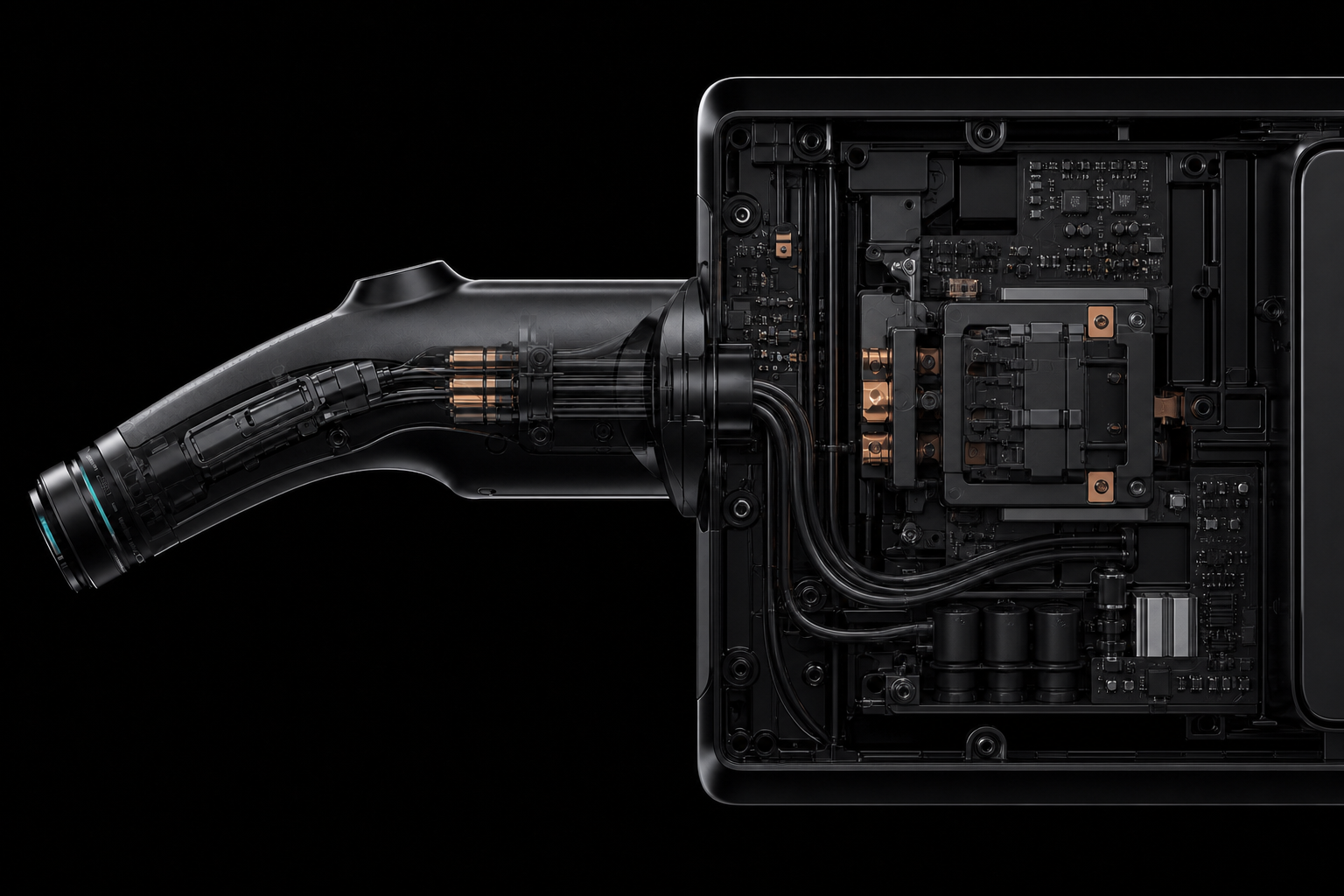

Detail of the Nexus's construction
Discreet wall installationDesigned for everyday flow

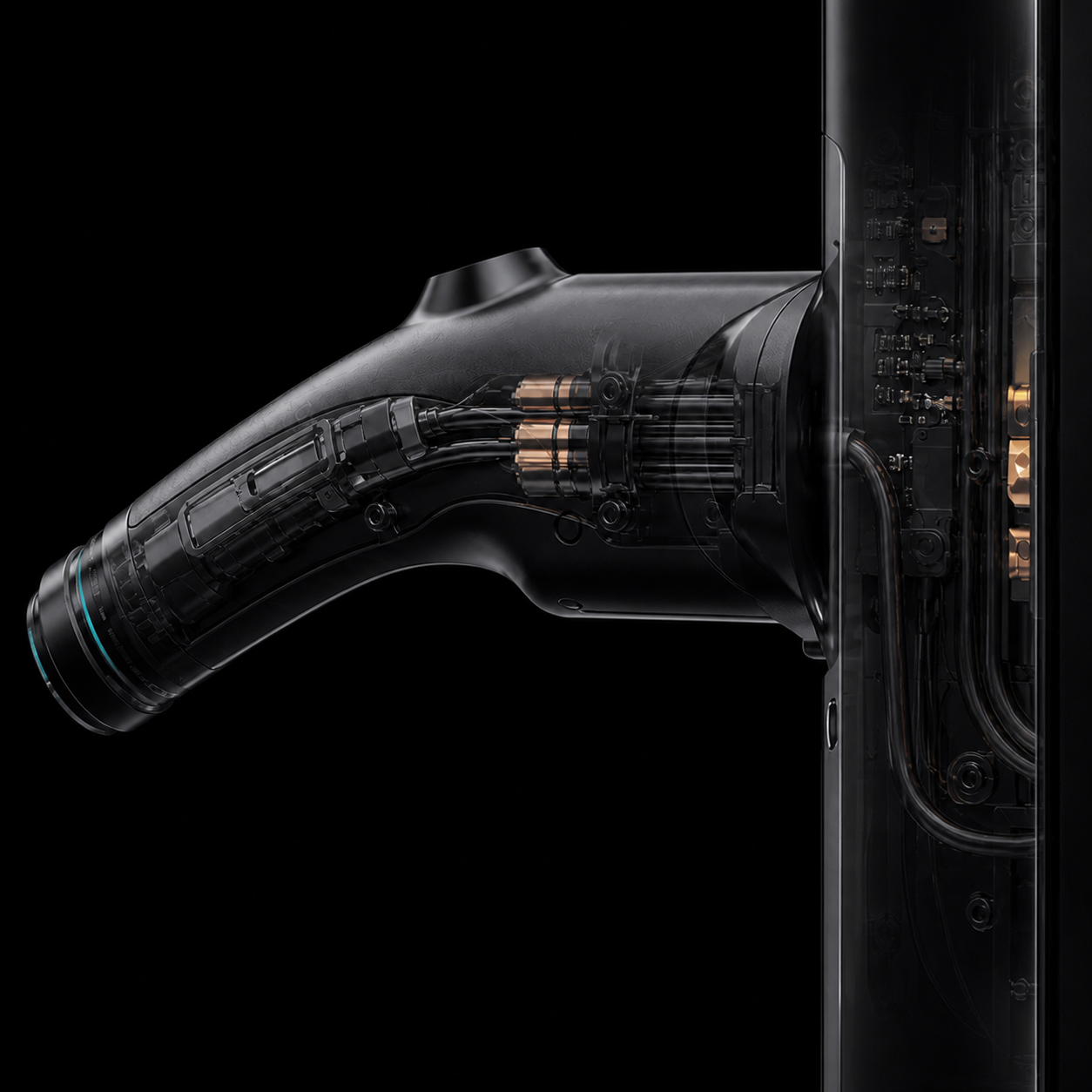

Detail of the Nexus's interface and connector
Point of interactionIntegrated LED ring

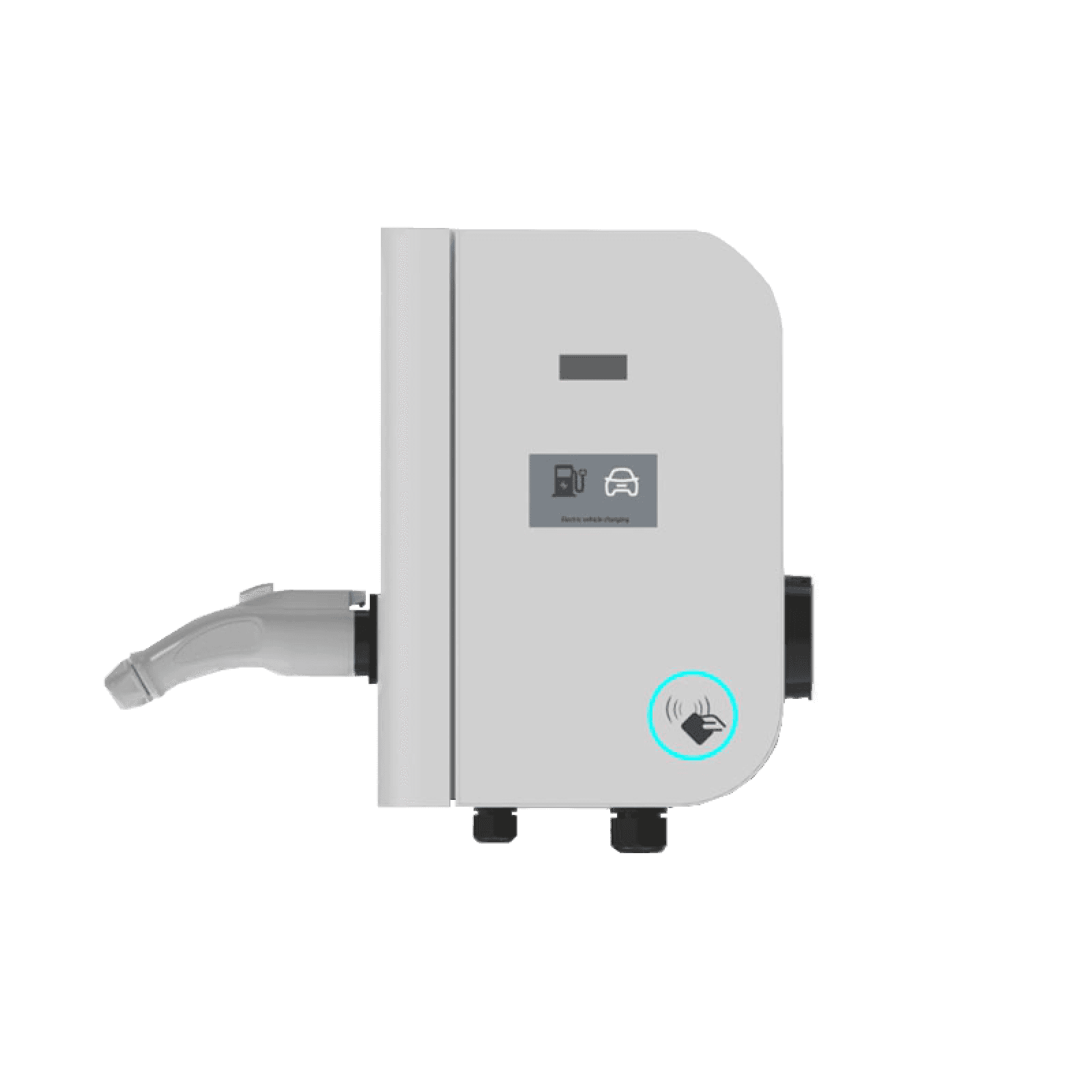

Full view of the Nexus
Ready for charging networksHyperinso

06 Your own installation

Nexus,where you need it.

Talk to the Hyperinso team about siting, power, connectivity and the management of your own installation.
