Obsidian

Always ahead of demand.

Obsidian is the leading charging solution for commercial applications. With impressive performance, robust construction and advanced technology, it redefines electric vehicle charging.

Designed
from the inside out.
Explore the product

01 Overview

Misty Black, Polar White
Free-standing floor installation

44 kW and two points
in one floor-standing unit.

With up to 44 kW of power, a built-in 4.3-inch touchscreen and Wi-Fi or 4G LTE connectivity, the Obsidian is ready for whatever you need. Made to stand on the floor in a durable metal enclosure, it offers reliability and a look that lasts. Choose the Obsidian and give your business the edge.

Maximum power
44kW
Charging outputs
02outputs
Protection
IP55enclosure
Net weight
35kg

02 Design

Precision outside.
Technology inside.

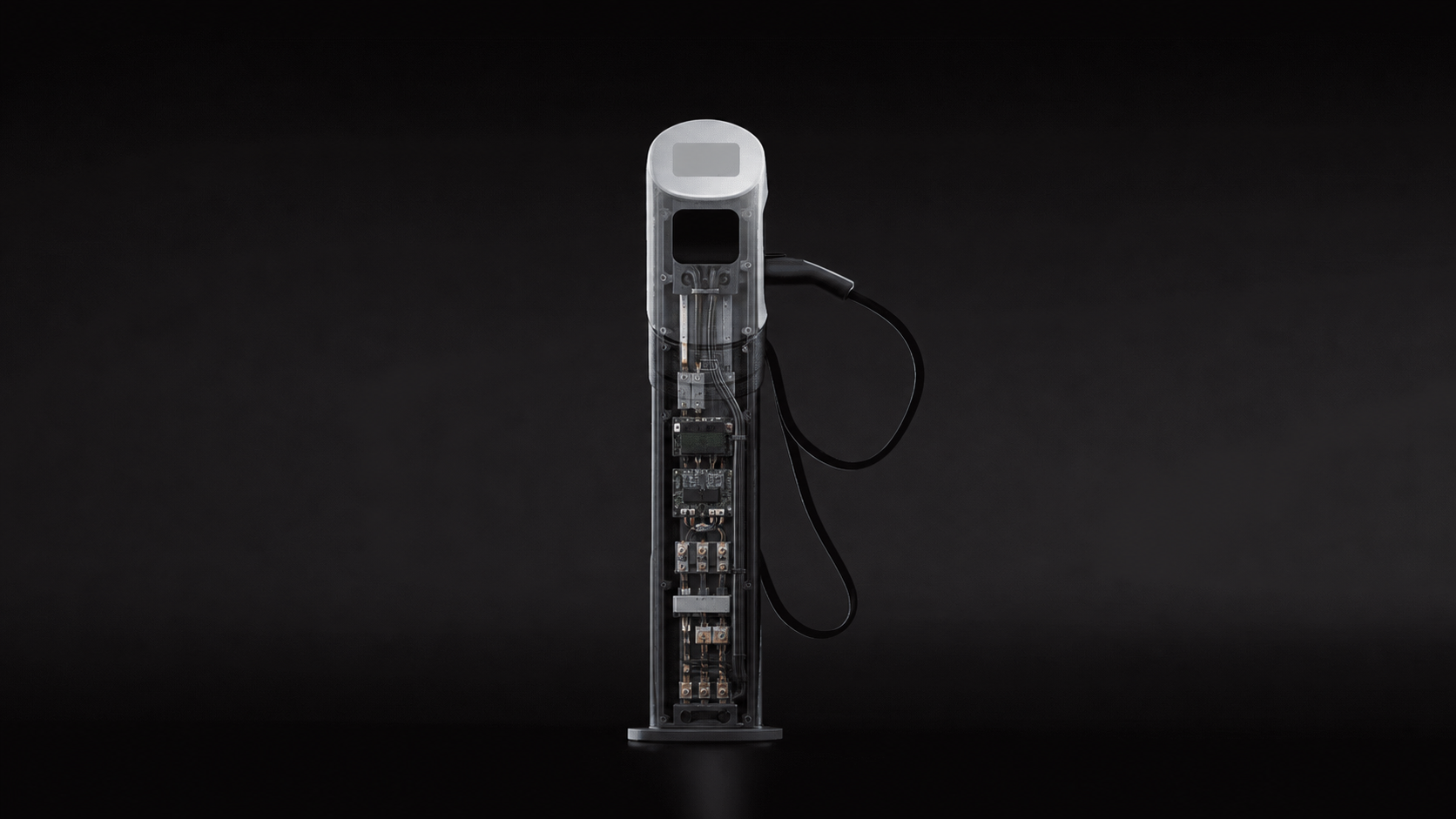

The grey outer surface gives way, layer by layer, to the internal architecture of a system built for continuous commercial use.

The Obsidian in full 3D with the silver top unit, black stand and charging cable

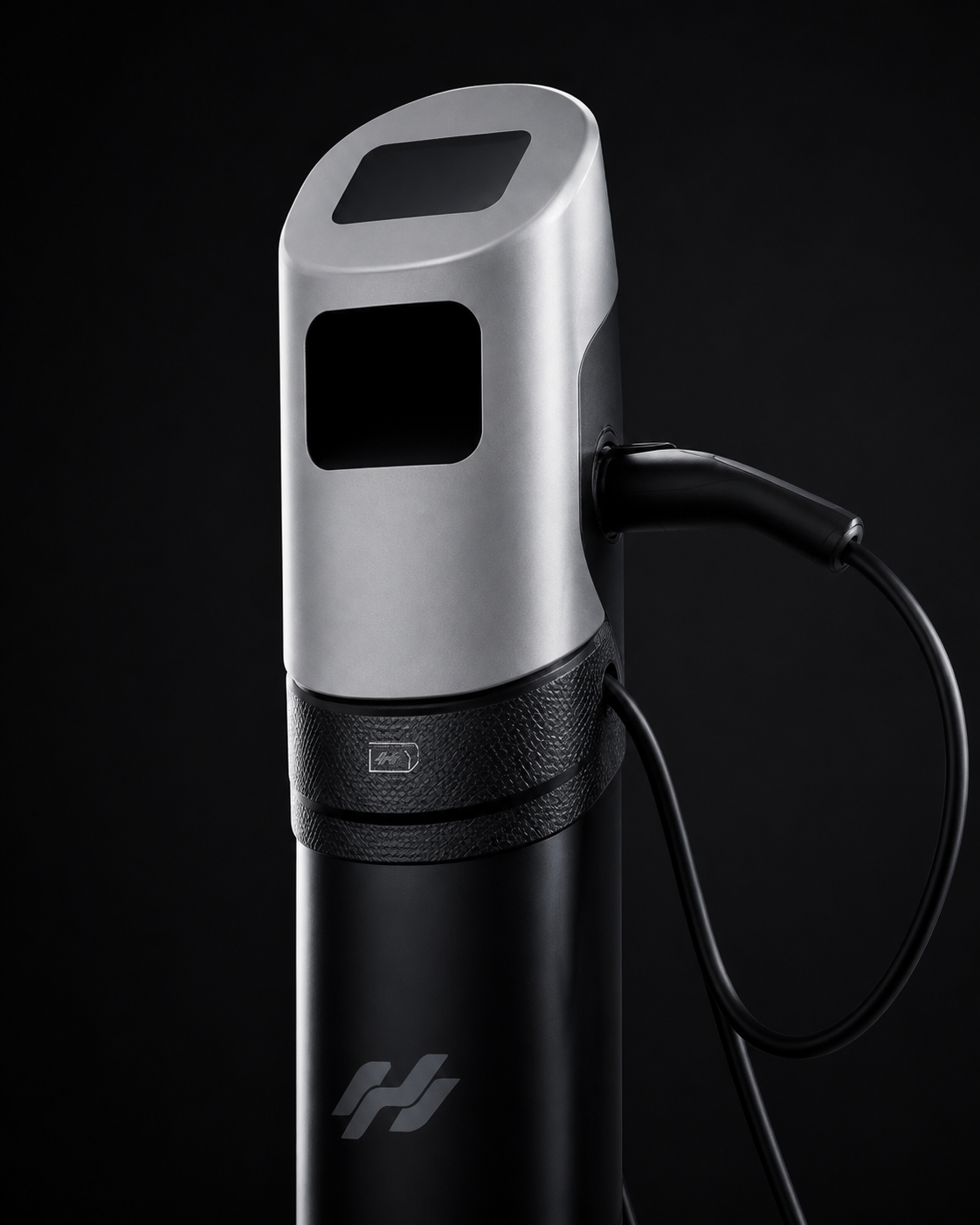

Close-up of the upper unit, connector and transition to the Obsidian cylindrical base
Side view of the Obsidian highlighting the sculptural silhouette and cable routing

03 Technology

Built to
inspire confidence.

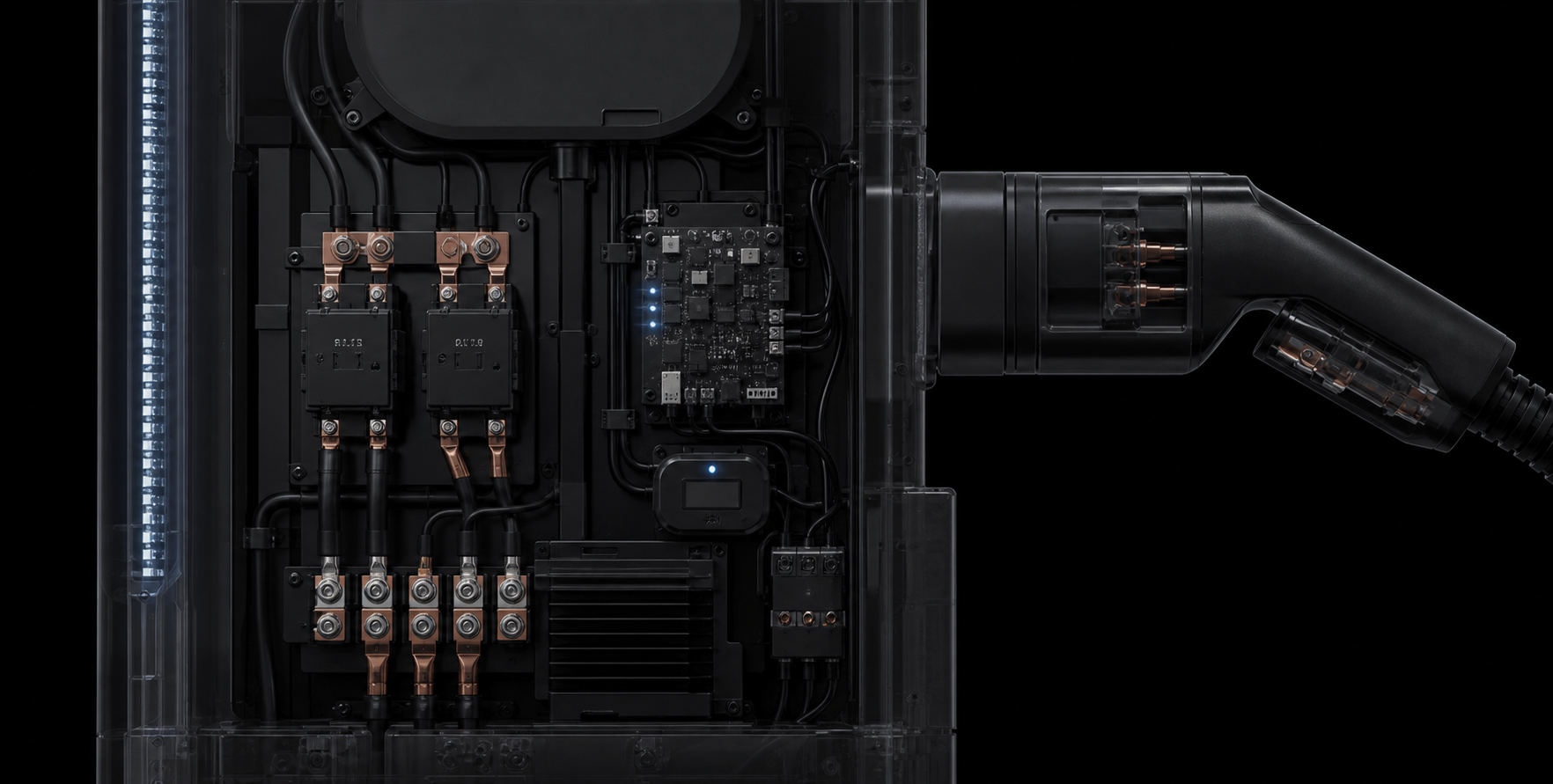

Conceptual technical cutaway of the Obsidian's construction and components
Conceptual technical illustration · Obsidian
  1. 01

    44 kW / Mode 3

    Three-phase 400/480 V AC supply for professional installations.

  2. 02

    Two connection points

    Two connectors and a fixed 5 m cable.

  3. 03

    Control and access

    A 4.3-inch display, OCPP 1.6 and identification by Autostart, PIN or RFID.

  4. 04

    Metal construction

    Sheet metal floor unit, IP55 protection and a choice of Misty Black or Polar White.

04 Power and control

44kW.
Exactly where it is needed.

Power, communication and safety work as one system, matched to the needs of your installation.

OCPP 1.6Wi-Fi / BluetoothRS485Autostart / Password / RFID card

05 Specifications

Everything you need.
Nothing you don't.

The Obsidian's technical data, organized for quick reading and accurate assessment.

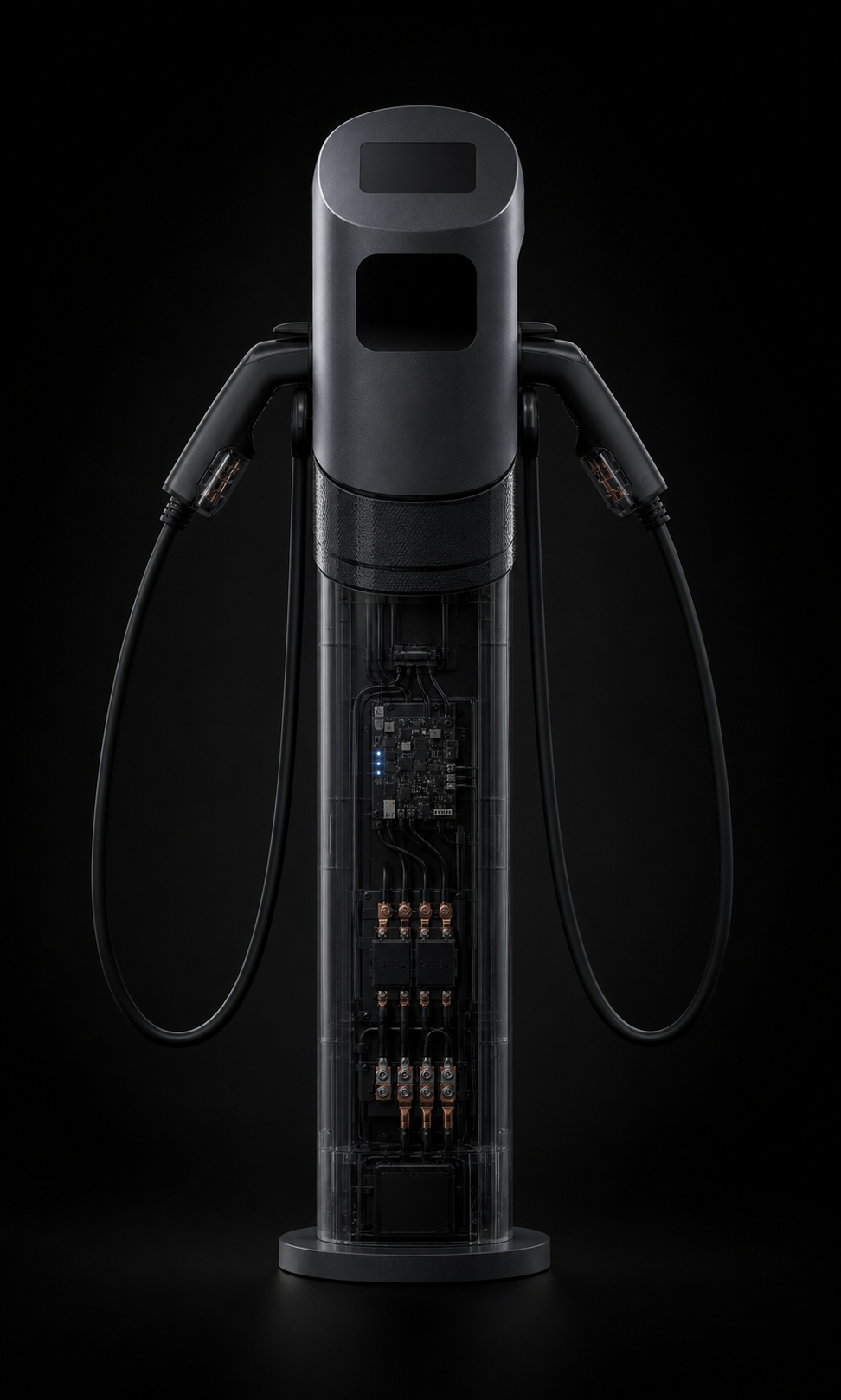

The full Obsidian on a dark background
ObsidianProfessional EV charging system
01ElectricalPower delivery
Charging capability
44 kW
Charging mode
Mode 3
Number of connectors
2 X
Connector type
Type 1 (SAE J1772), Type 2 (IEC 62196-2), NACS
Fixed cable length
5 meters
Power connection
3-phase, 400/480 V AC, 32/40/48/80 A, 50-60 Hz
Energy metering
Optional MID Meter
Identification method
Autostart / Password / RFID card
Display
4.3-inch Screen
02ConnectivityNetwork & control
Wireless connection
Wi-Fi / Bluetooth 4.0 (Optional)
Mobile network
4G LTE (EU) (Optional)
Serial port
RS485 interface for dynamic load balancing and solar integration
Protocol
OCPP 1.6
Positioning
GPS (Optional) / Wi-Fi
Maximum altitude
+2000m
03SafetyProtection & compliance
Earth leakage detection
6 mA DC CCID
Operating humidity
Max. 95% non-condensing
Enclosure protection rating
IP55
Fire resistance
UL94V-0
Certification
CE / US
Operating temperature
-20°C to +50°C
Compliance
UL2231, UL2594, FCC part15, IEC 61851-1, IEC 61851-21-2, CSA C22.2 No.280-13
04ConstructionPhysical system
Height
1,215 mm
Depth
311 mm
Width
311 mm
Enclosure material
Sheet Metal
Net weight
35 kg
Gross weight
50 kg
Installation method
Floor standing all-in-one stand-alone unit
Color
Misty Black, Polar White

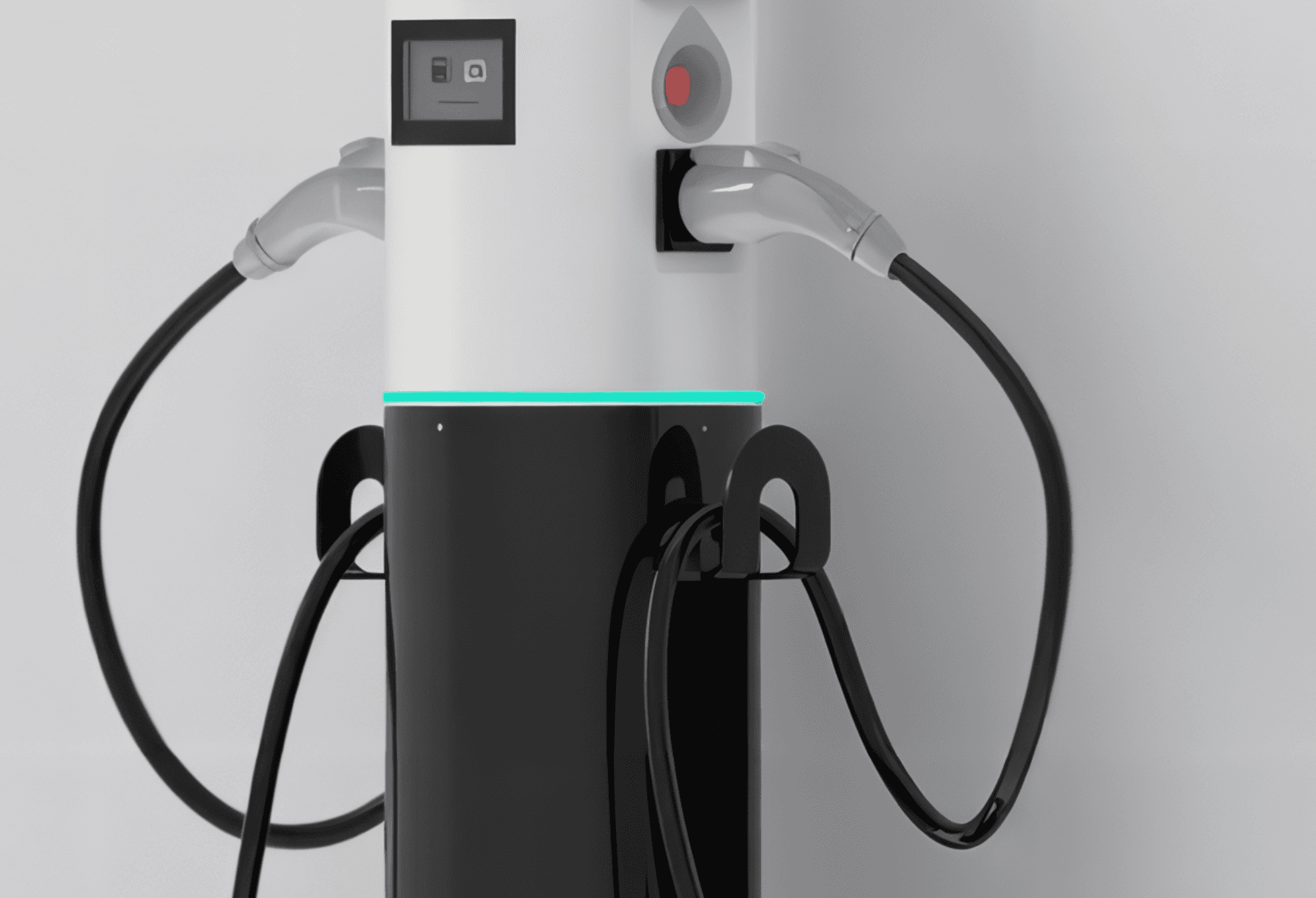

Detail of the Obsidian's construction
Dual connector systemDesigned for everyday flow

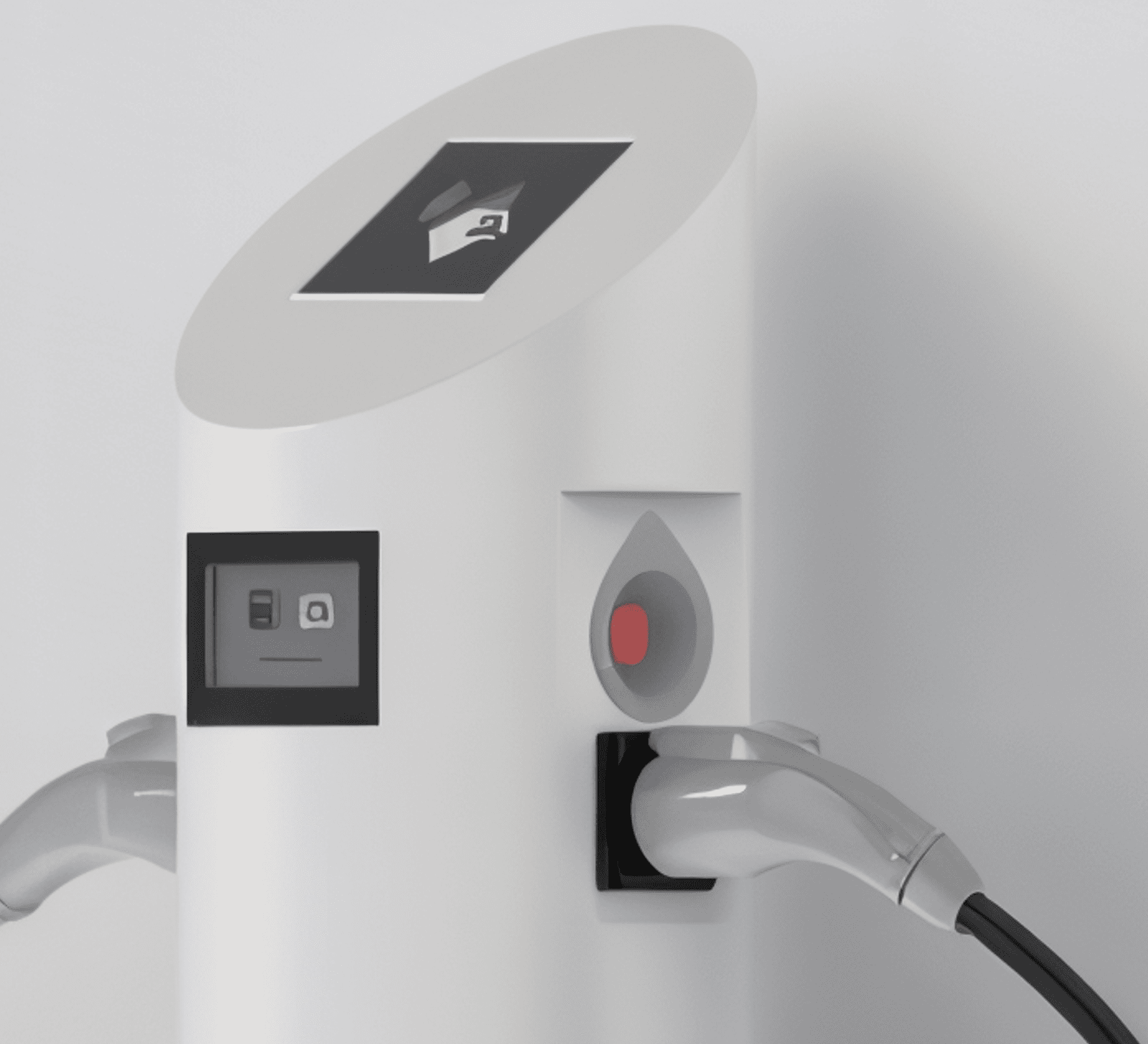

Detail of the Obsidian's interface and connector
Point of interaction4.3-inch display

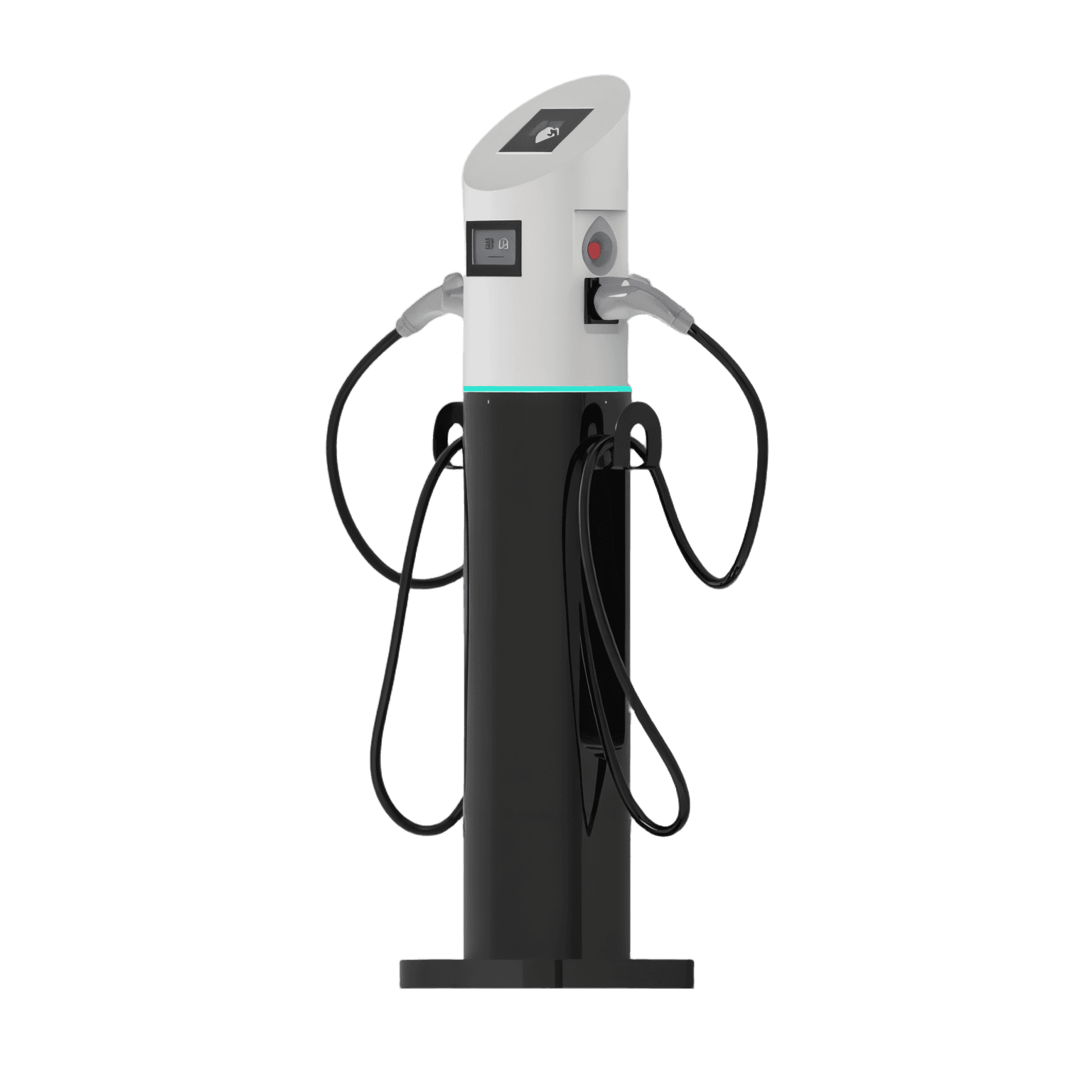

Full view of the Obsidian
Free-standing floor installationHyperinso

06 Your own installation

Obsidian,where you need it.

Talk to the Hyperinso team about siting, power, connectivity and the management of your own installation.

Request a proposal for the Obsidian
