Bolt

Performance without limits.

Powerful and elegant, the Bolt AC 7kW takes charging to the next level. Built with quick performance and current technology, it was designed to change what charging at home feels like. Make every charge an experience of comfort and efficiency.

Designed
from the inside out.
Explore the product

01 Overview

Misty Black
Wall or pole mounting

7 kW for charging
at home.

With 7 kW of power, advanced Wi-Fi and Bluetooth connectivity and optional 4G LTE, the Bolt is always ready. Mount it on a wall or a pole and enjoy dynamic charging that adapts to your needs. Choose the Bolt and live the next chapter of electric mobility.

Maximum power
7kW
Charging outputs
01output
Protection
IP55enclosure
Net weight
6kg

02 Design

Quiet presence.
Real power.

The Bolt settles into the home with clean geometry, quick performance and connectivity that keeps every charge under control.

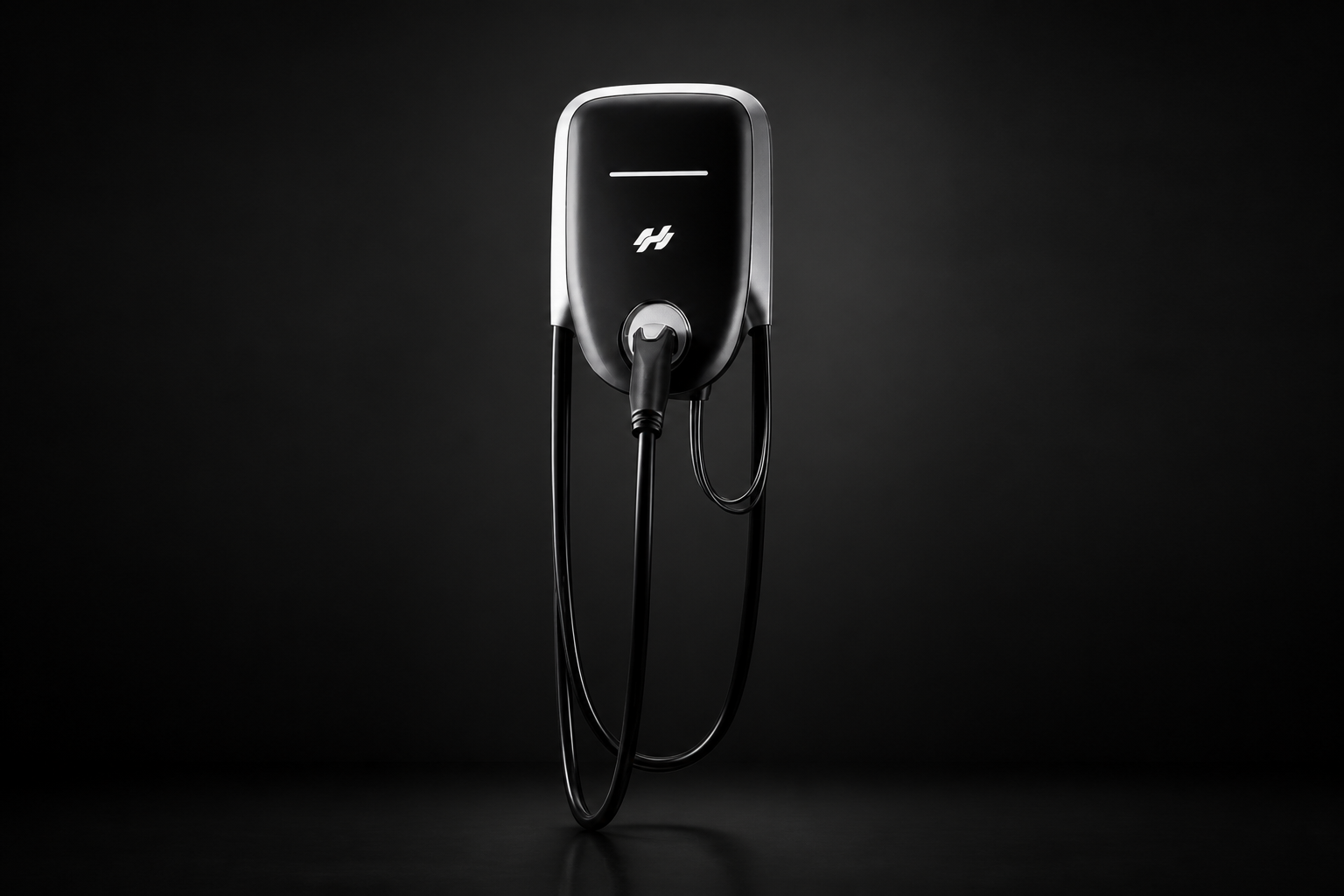

The Bolt in full 3D view, with its rounded enclosure and fixed cable

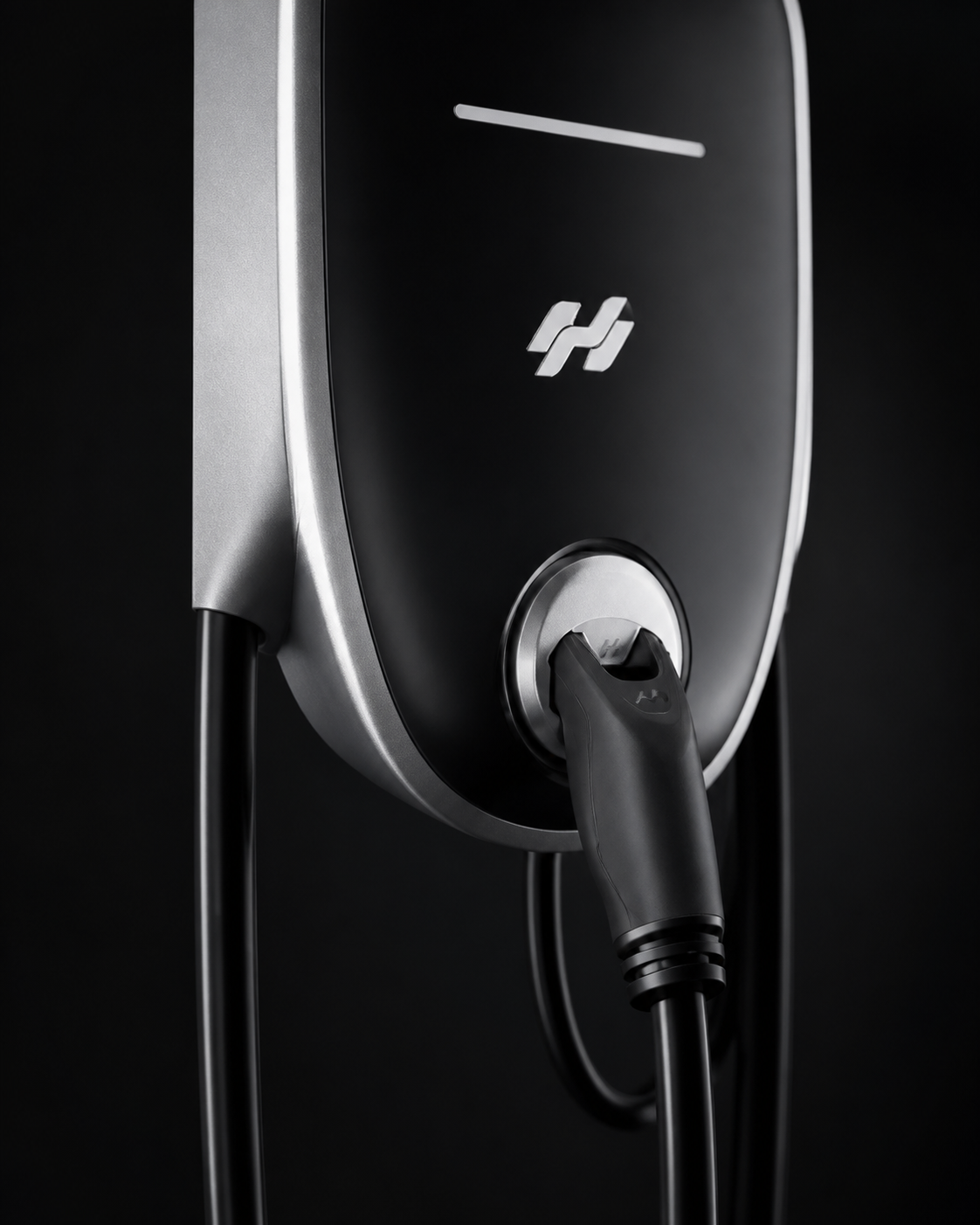

Close view of the Bolt's front face, status light and connector
Side view of the Bolt, showing the slim wall enclosure and the cable run

03 Technology

Smart energy,
without needless complexity.

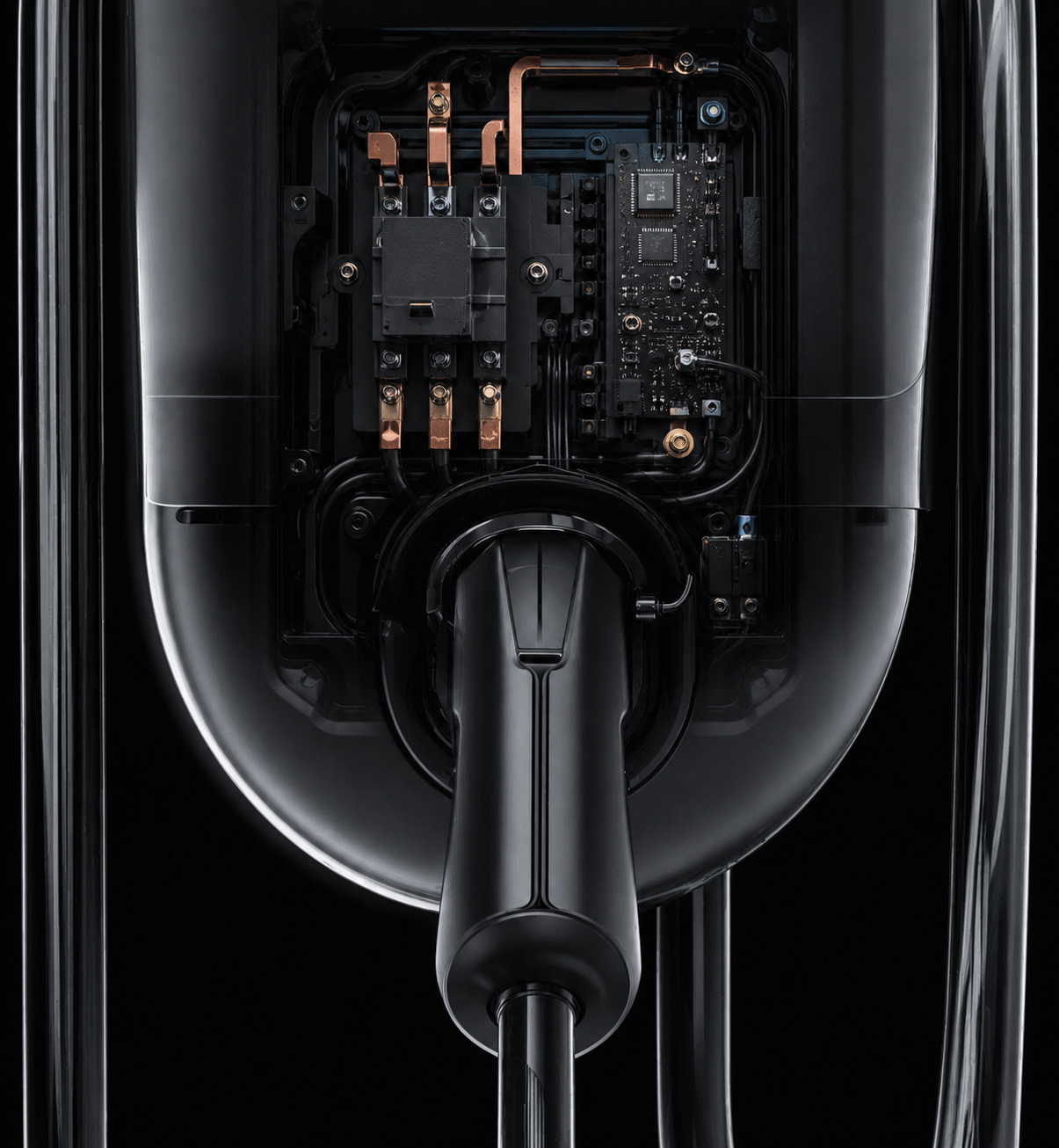

Conceptual technical cutaway of the Bolt's construction and components
Conceptual technical illustration · Bolt
  1. 01

    7 kW / Mode 3

    Single-phase 32 A supply, 176–264 V AC, Mode 3 operation.

  2. 02

    Fixed 5 m cable

    One connection point, with Type 1, Type 2 or NACS options.

  3. 03

    Connected operation

    OCPP 1.6, with optional Wi‑Fi, Bluetooth 4.0 and 4G LTE (EU).

  4. 04

    Flexible installation

    Wall or pole mounting, ABS+PC enclosure and IP55 protection.

04 Power and control

7kW.
Exactly where it is needed.

Power, communication and safety work as one system, matched to the needs of your installation.

OCPP 1.6Wi-Fi / BluetoothRS485Autostart

05 Specifications

Everything you need.
Nothing you don't.

The Bolt's technical data, organized for quick reading and accurate assessment.

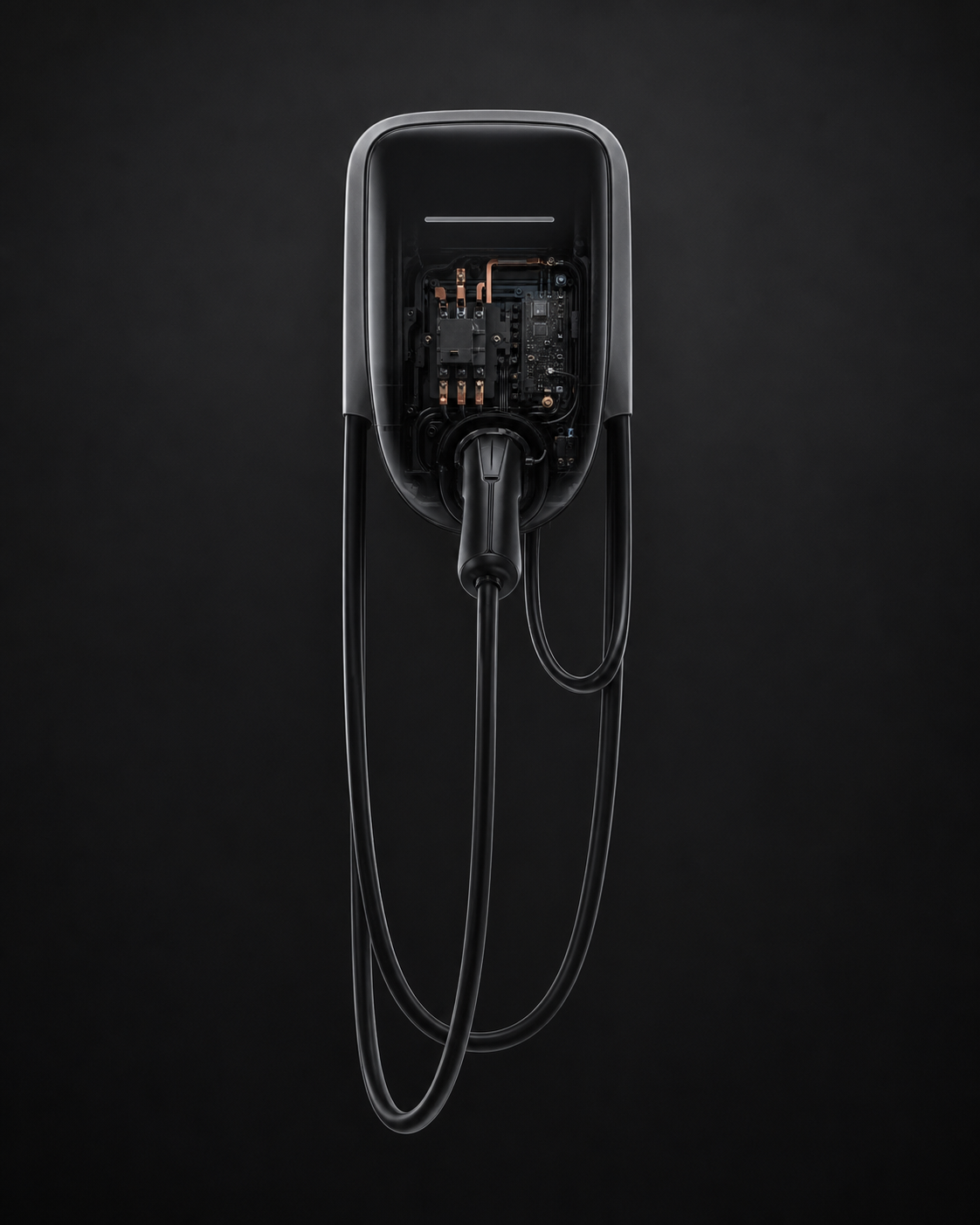

The full Bolt on a dark background
BoltHome EV charging system
01ElectricalPower delivery
Charging capability
7 kW
Charging mode
Mode 3
Number of connectors
1 X
Connector type
Type 1 (SAE J1772), Type 2 (IEC 62196-2), NACS
Fixed cable length
5 meters
Power connection
1-phase, 176-264 V AC, 32 A, 50-60 Hz
Energy metering
Power consumption measured on chip
Identification method
Autostart
Display
LED ring
02ConnectivityNetwork & control
Wireless connection
Wi-Fi / Bluetooth 4.0 (Optional)
Mobile network
4G LTE (EU) (Optional)
Serial port
RS485 interface for dynamic load balancing and solar integration
Smart scheduling
Scheduled charging if supported via the backend
Protocol
OCPP 1.6
Positioning
GPS (Optional) / Wi-Fi
Maximum altitude
+2000m
03SafetyProtection & compliance
Earth leakage detection
6 mA DC CCID
Operating humidity
Max. 95% non-condensing
Enclosure protection rating
IP55
Fire resistance
UL94V-0
Certification
CE
Operating temperature
-20°C to +50°C
Compliance
IEC 61851-1, IEC 61851-21-2
04ConstructionPhysical system
Height
319.5 mm
Depth
97 mm
Width
195.5 mm
Enclosure material
ABS+PC
Net weight
6 kg
Gross weight
6.5 kg
Installation method
Wall / pole
Color
Misty Black

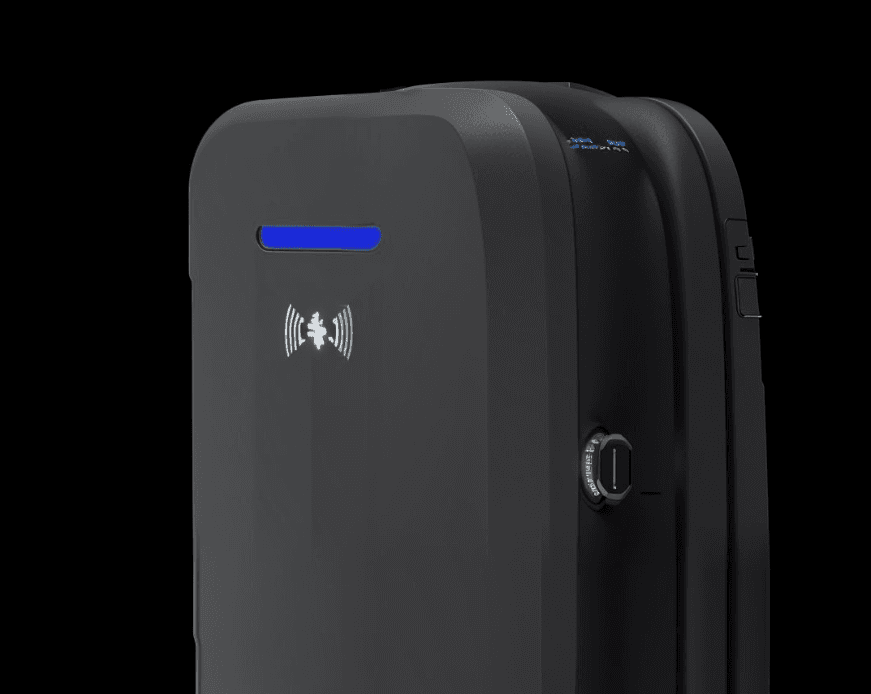

Detail of the Bolt's construction
Wall-mounted designDesigned for everyday flow

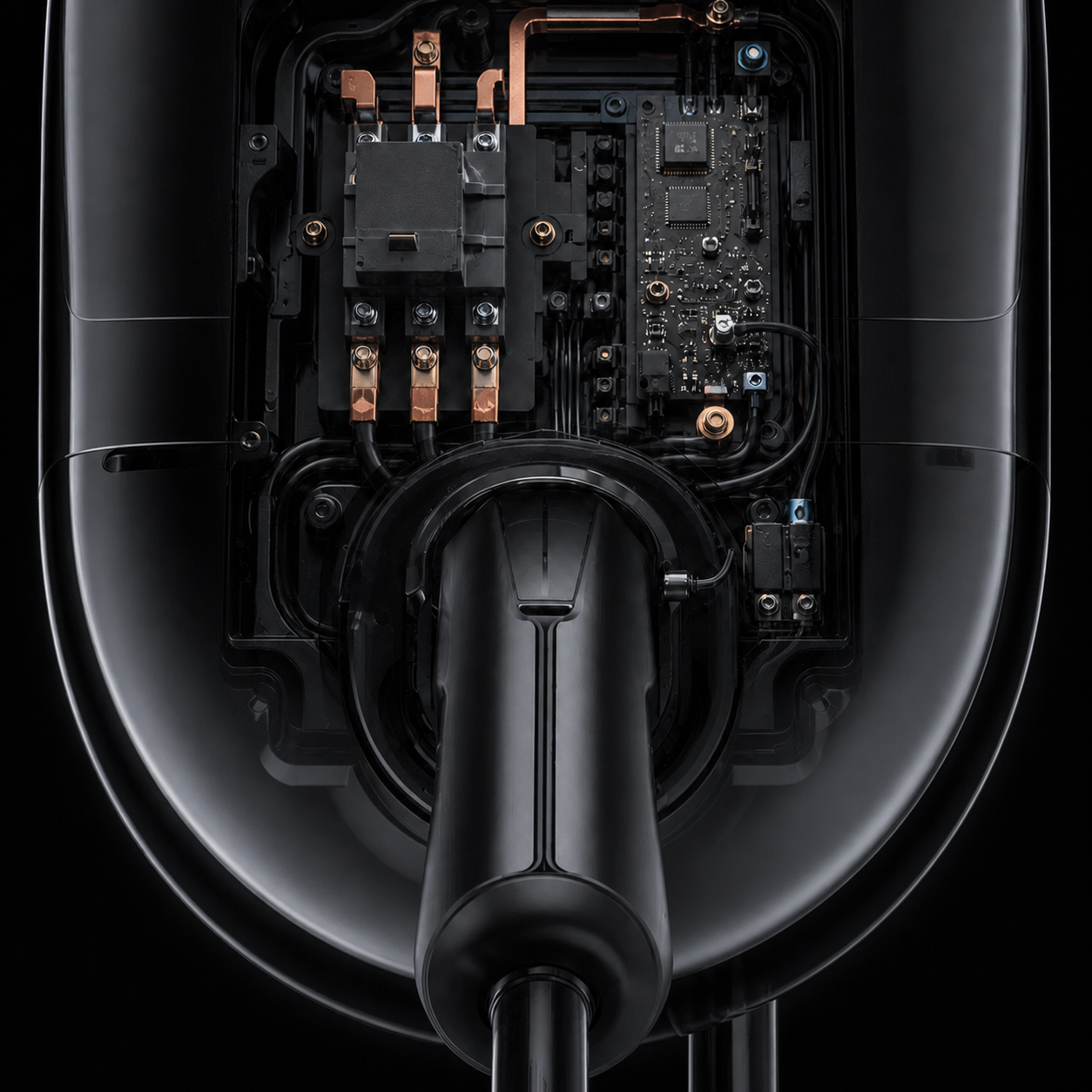

Detail of the Bolt's interface and connector
Point of interactionStatus light

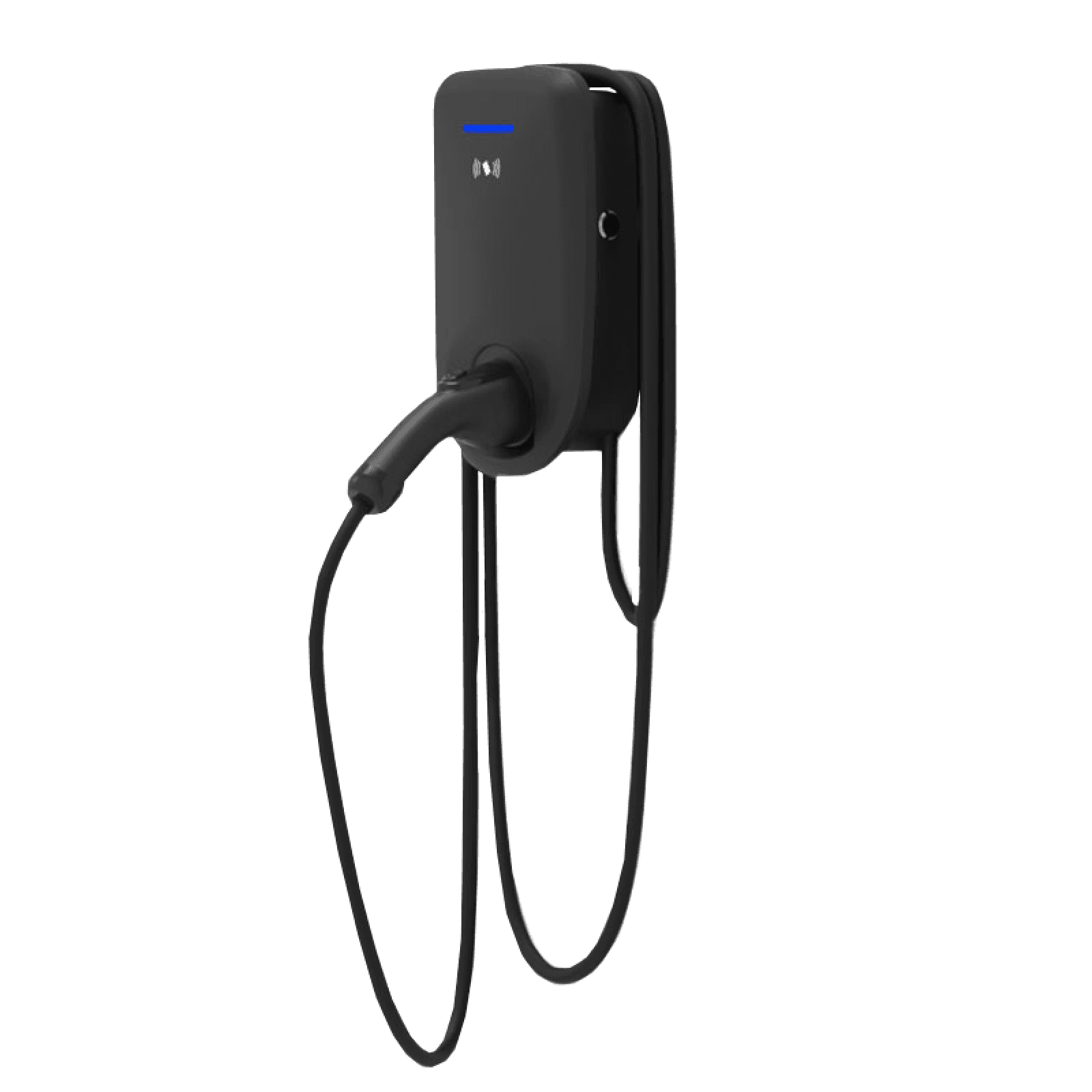

Full view of the Bolt
Designed for the homeHyperinso

06 Your own installation

Bolt,where you need it.

Talk to the Hyperinso team about siting, power, connectivity and the management of your own installation.

Request information about the Bolt
